Used Making Corrugated Box Water ink Flexo Printer Slotter Machine
Used Making Corrugated Box Water ink Flexo Printer Slotter Machine
The machine features
1. Feeding paper roller adopt patterned roller, feeding paper roller pressure adjustment adopt adjust and left-right adjust the pressure synchronous
2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, to avoid the slotting error when pushing paperboard which make upper paperboard misplace, can fit to every kinds paperboard, and sending paper stable and accurate.
3. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator (speed adjustable freely), adopt Jintiao frequency converter.
4. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.
The Technological parameter
| Technology Parameter | ||
| Model | 2000 | |
| Max machine speed | 120 pieces/min | |
| Max feeding area (L * W) | 1700mmX600mm | |
| Width of printing roller | 1600mm | |
| Min feeding area (L * W) | 450mmX170mm | |
| Min slotting interval | Negative knife (A * B) | 150mmX50mm |
| Positive knife (A * B) | 80mmX80mm | |
| Min height of box (H) | 70mm | |
| Dimension (Length*Width*Height) | 3200mmX2500mmX1680mm | |
| Weight | 4500 KG | |

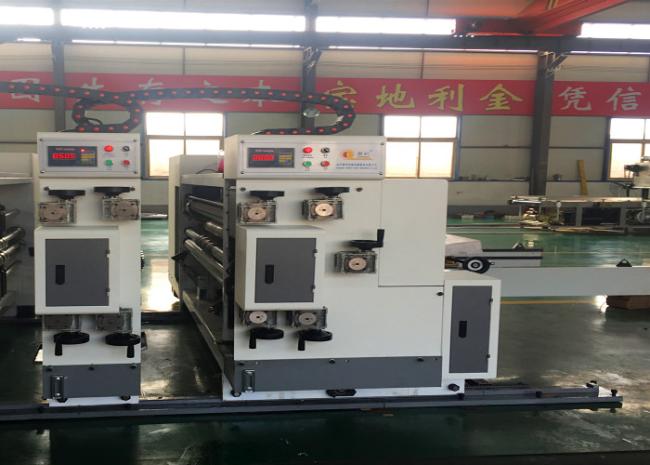

The Printing slotting machine Photos
