Manual Corrugated Carton Paper Creasing Die Cutting Machine For Carton Box
Price:
USD 2500 - 8000 Per Set
MOQ:
1 Set
Delivery Time:
20- 40 Work Days
Brand:
ZHAOLI BRAND
Product Description
Manual Corrugated Carton Paper Creasing Die Cutting Machine / Die Cutting Machine For Carton Box
The function of creasing die cutting Machine
- Sliding bearing adopts the high quality casting copper alloy, wear-resisting and damped.
- The machine is made of high quality materials and whole casting , high strength, good rigidity.
- With single creasing & cutting, continuous creasing & cutting and open delay three functions, the delay range can adjust at will.
- The safety protection system is reliable .
- High fly-wheel torque .
- Single type electromagnetic clutch is sensitive and reliable .
- Operating height is designed reasonable, the pressure frame can open big angle .
- Adopting electric sucked type brake clutch, sensitive brake , high insurance coefficient , high safety performance etc.
- Adopting adjustable frame on the template, convenient to disassemble and install the plate .
-
-
-
-
Standard Configuration :
manual oil supply, concentrated oil or computer automatic oil supply configuration . Can be customized frequency control of motor speed .
The main Parameter of creasing die cutting machine
| Model | Max Inner Size | Working Speed | Creasing & Cutting Length | Motor Power | Weight | Overall Dimensions (L×W×H) |
| ML750 | 750*520 mm | 28±2 (strokes/min) | <15m | 2.2kw | 2000kg | 1260*1350*1280mm |
| ML930 | 930*670 mm | 23±2 (strokes/min) | <25m | 4.0kw | 3000kg | 1670*1670*1630mm |
| ML1100 | 1100*800mm | 20±2 (strokes/min) | <32m | 4.0kw | 4500kg | 1900*1800*1700mm |
| ML1200 | 1200*830mm | 20±2 (strokes/min) | <35m | 4.0kw | 4800kg | 1900*2000*1700mm |
| ML1300 | 1300*920mm | 18±2 (strokes/min) | <40m | 5.5kw | 6000kg | 2000*2400*1800mm |
| ML1400 | 1400*1000mm | 18±2 (strokes/min) | <45m | 5.5kw | 6500kg | 2000*2450*1900mm |
| ML1500 | 1500*1050mm | 18±2 (strokes/min) | <45m | 5.5kw | 7000kg | 2000*2500*1930mm |
| ML1600 | 1600*1250mm | 16±2 (strokes/min) | <50m | 11kw | 11000kg | 2170*2560*2230mm |
| ML1800 | 1800*1300mm | 16±2 (strokes/min) | <62m | 15kw | 13500kg | 2240*2800*2130mm |

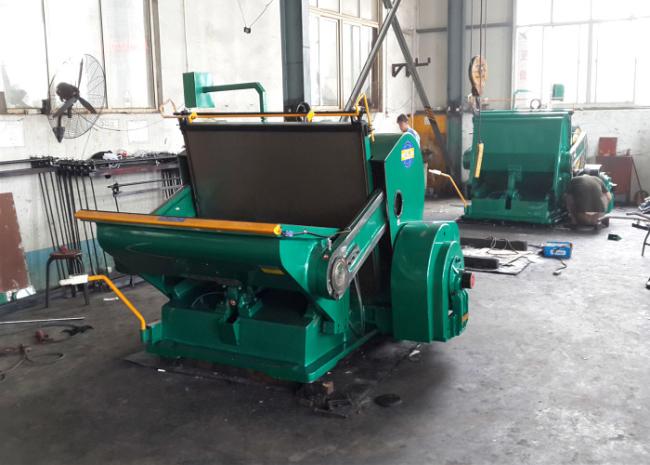

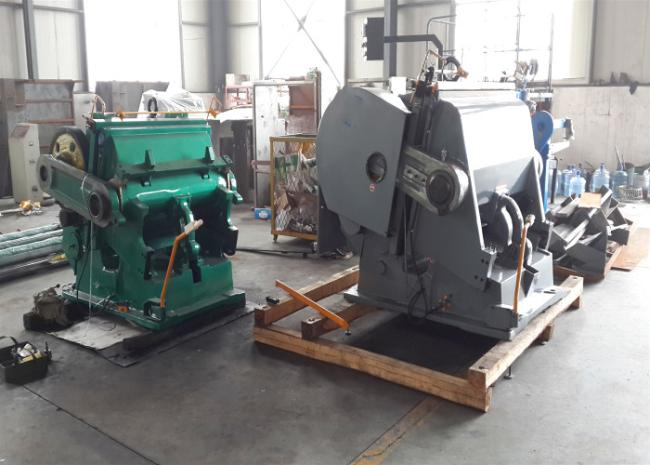

The Pictures of Creasing die cutting Machine
