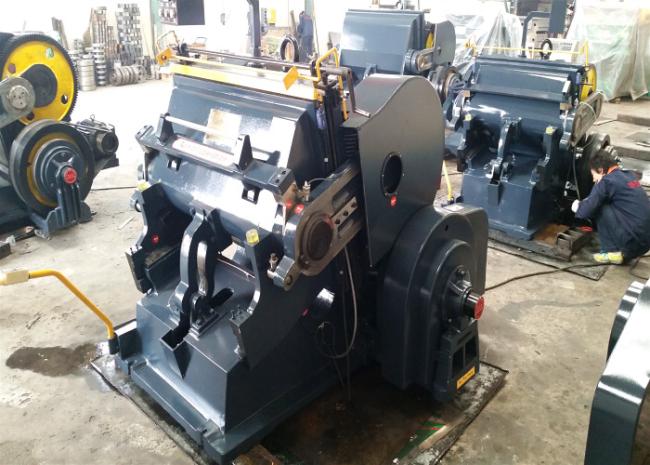

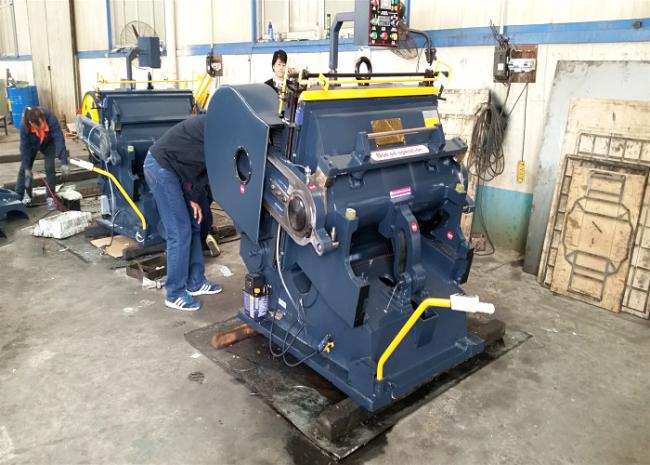

ML Series Pizaa Box Flat Creasing Die Cutting Machine / Corrugated Box Making Machine
ML Series Pizaa Box Flat Creasing Die Cutting Machine / Carton Box Die Cutting Machine
Functions
1 ML series pizza box flat creasing die cutting machine combines functions of creasing and die cutting. It is special equipment for creasing and cutting corrugated board, ordinary cardboard , plastic and leather, which is applicable to printing, packaging, decoration and plastic industries.
Features
1. Sliding bearing adopts high quality copper alloy, resisting and shock absorption.
2. High degree of force of the free-wheel, high pressure.
3. Use high level material integral casting for high intensity machine.
4. Single plate electromagnetic clutch is sensitive and reliable safety.
5. Single pressing, continuous pressing, adjustable delay pressing.
6. Operational height is reasonaby arranged. The opening angle of moving bed is optimum.
7. Reliable performance of safety protection system.
8. It could be equipped with inside or outside flexible frame and centralized oil filler.
The Machine Main Parameter :
| Model | Max Inner Size(mm ) | Working Speed(strokes/min) | Creasing & Cutting Length (m) | Motor Power(kw) | Weight | Overall Dimensions (L×W×H) |
| ML750 | 750*520 | 28±2 | <15 | 2.2 | 2000kg | 1260*1350*1280 |
| ML930 | 930*670 | 23±2 | <25 | 4.0 | 3000kg | 1670*1670*1630 |
| ML1100 | 1100*800 | 20±2 | <32 | 4.0 | 4500kg | 1900*1800*1700 |
| ML1200 | 1200*830 | 20±2 | <35 | 4.0 | 4800kg | 1900*2000*1700 |
| ML1300 | 1300*920 | 18±2 | <40 | 5.5 | 6000kg | 2000*2400*1800 |
| ML1400 | 1400*1000 | 18±2 | <45 | 5.5 | 6500kg | 2000*2450*1900 |
| ML1500 | 1500*1050 | 18±2 | <45 | 5.5 | 7000kg | 2000*2500*1930 |
| ML1600 | 1600*1250 | 16±2 | <50 | 11 | 11000kg | 2170*2560*2230 |
| ML1800 | 1800*1300 | 16±2 | <62 | 15 | 13500kg | 2240*2800*2130 |
