High Speed Flexo Printer Slotter Die Cutter PLC Control CE Approved
Speed 150 Pcs / Min Automatic Cardboard Flexo Printing Slotting Die Cutting Machine
The machine Features and function
1 The whole machine is adopts electrical appliance made by famous brands (Schneider of France )
2 The driving gears adopt planet structure . And by high frenquency quenching and polishing .
3 In order to increase hardness , all axles are chrom - plated .
4 Automatic back to Zero
5 The gears adopt a shower type circular lubricating .
6 Multi- color Printing units can be combined and linked any ways.
7 Adopt PLC control and using frequency converter .
8 Have oders stroages function.
The machine main Parameter
| Item | 1200 * 2200 model type |
| Wallboard medial width | 50 mm |
| The diameter of the anilox | 410 mm |
| Max feeding paperboard size | 1200 mm*2200 mm |
| Max effective printing size | 1200 mm*2000 mm |
| Min process paperboard size | 350 mm*600 mm |
| Thickness of the printing plank | 7.2 mm |
| Max speed | 160 pieces/min |
| Economical speed | 150 pieces/min |
| Precision of the printing | ±0.75 mm |
| Precision of the slotting | ±1 mm |
| Max depth of slotting | 300 mm |
| Min grooving space | 300mm*100mm*300mm*100mm |
| Printing rolling axle circle-oriented regulating | 360 degree revolving |
| Printing rolling axle-oriented regulating | +/-10mm |
| Power | 22 kw |
| Power supply | as customer’s wish |

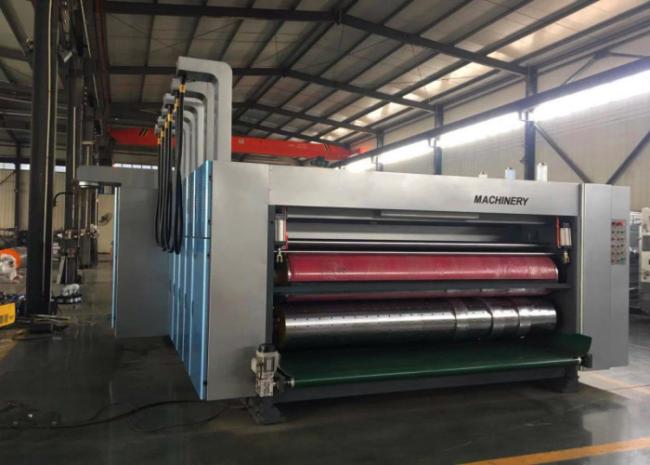

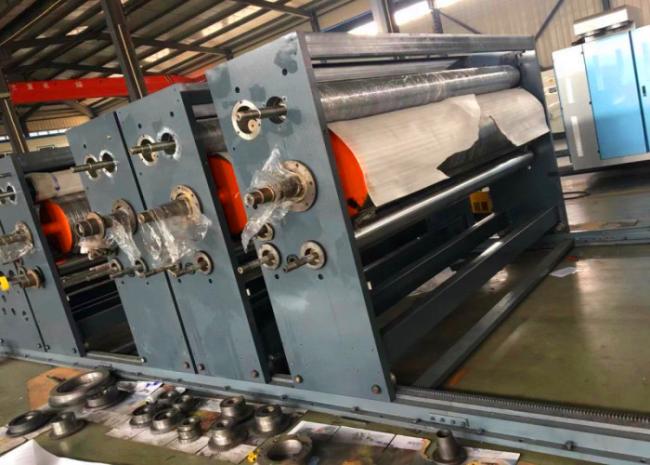

The machine real pictures
