Single Sheet Nail Type Carton Box Making Machine , Carton Box Stitcher Machine
Price:
USD 5000 - 30000
MOQ:
1 Set
Delivery Time:
30 - 50 work days
Brand:
Zhaoli Brand
Product Description
Single Sheet Nail Type Carton Box Stitcher Machine / Carton Box Making Machine
The machine feature and function
1 size change quickly , easy to operate .
2 Single nails , double nails ,strength nails .
3 Servo systems .
4 Nails distance can be set up on the touching screen .
5 The nails distance can reach 30 - 120 mm
6 Paper feeding automatic counting , bundled into a bunch of senting .
7 Touch screen control .
8 Stitching whether the carton has carter or not .
The stitching machine main parameter
Technological Parameter ( Model Type BL-2800):
| Model Type | BL-2800 |
| Max Stapling Size (A+B)*2 | 2460mm |
| Min Stapling Size (A+B)*2 | 606mm |
| Max Stapling Size B+D | 1515mm |
| Min Stapling Size B+D | 300mm |
| The Height Of Feeding | 900mm |
| Working Speed | 500stitches∕min |
| Horsepower | 4HP |
| The Length Of Machine | 2800mm |
| The Width Of Machine | 2600mm |
| The Weight Of Machine | 2000kg |
| Number Of Nails | 1—99 |
| Nail Distance | 30—120mm |

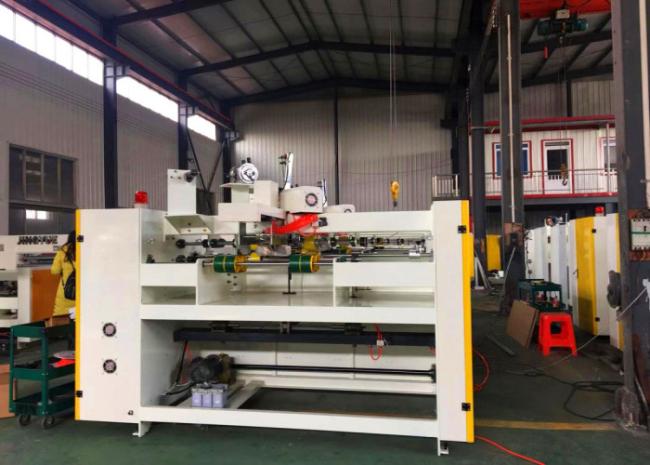

The stitching machine main pictures
