Two Sheets Nail Type Carton Box Stitching Machine 30 - 150 Mm Nails Distance
Two Sheets Nail Type Corrugated Box Stitcher machine / Used Stitching Carton Box Machine
The machine instruction
It Can nail box & has a lid without cover carton box (with and without cover is required at time of order to nail in mechanical specification).
After a period of automatic counting function, completes the product number can be set according to the number (1-99) fold, to the end
of the conveying machinery, convenient packing banding.
Machine speed: 600 nail/min
Nail distance: 30-150mm Arbitrary adjustable
A dual purpose, it can stitch single piece and double piece,and irregular carton.
Size adopt full computerized control, change size only take 2-3mins
Can stitch strengthen nail, single nail , double nail, once complete
Feed automatic counting, finished product is sent out banding
Suitable for small and medium carton, binding quickly and save labor, there
is no limit to the technology:
Adjustment nail distance , use computer set up ,
adjust nail distance automatically, nail distance 30-150mm arbitrary adjustable
The machine adopts computer screen display failure.
The bottom without cover carton also can nail (special)
Used three layer, five layer corrugated cardboard, seven layers
(seven layers need special instructions)
The whole machine order adjustment (optional)
The stitcher machine parameter
| Model and technical data | BL-3000 |
| Max.Papersize(A+B*2(mm) | 5500 |
| Min.Papersize(A+B*2(mm) | 1060 |
| Max.Carton length A mm | 2500 |
| Min.Carton length A mm | 350 |
| Max.Carton width B mm | 1500 |
| Min.Carton width B mm | 120 |
| Max.Carton heigh(C+D+C) | 2500 |
| Min.Carton heigh(C+D+C) | 400 |
| Max.Shake cover sizeC(mm) | 560 |
| Min.Shake cover sizeC(mm) | 50 |
| Max.Height D (mm) | 2000 |
| Min.Height D (mm) | 150 |
| Max.Nail the tonguewidth(mm) | 40 |
| Nail distance (mm) | 30-150 |
| Nailof number | 1-99 |
| Nail speed(nails/min) | 600 |
|
Machineweight(T)
|
5 |

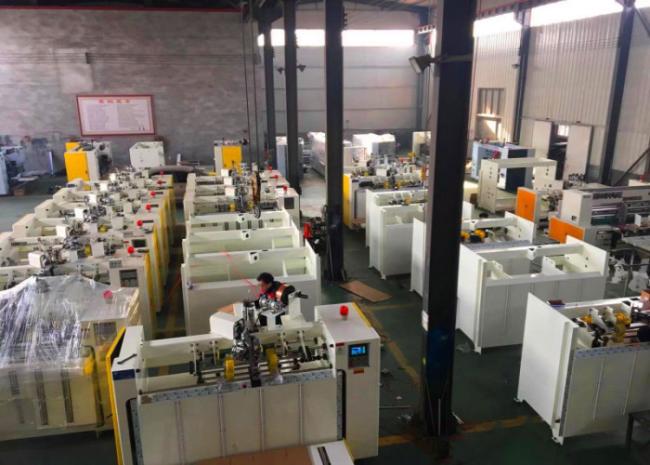

The carton box stitcher main photos
