Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine
Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine
The partition machine features
Choose the corrugated paperboard which you want to process, adjust the side feeding baffle .
Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
The machine technological parameter
| Paperboard feeding type | Automatic back kick feeding type |
| Paperboard processing range 1 | Max 1000*280mm Min 100*75mm |
| Paperboard processing range 2 | Max 1000*380mm Min 100*90mm |
| Paperboard processing range 3 | Max 1000*600mm Min 180*140mm |
| Min slotting distance | 45mm |
| Slotting number | 9 groups of slotting knives |
| Slotting width |
3.5mm 5mm 7mm (choose one according to the thinkness of paperboard) |
| Working speed | 120 piece/min |
| Three-phase motor | 380V 1.1kw |
| Overall dimension | 1500mm*1450mm*1300mm |

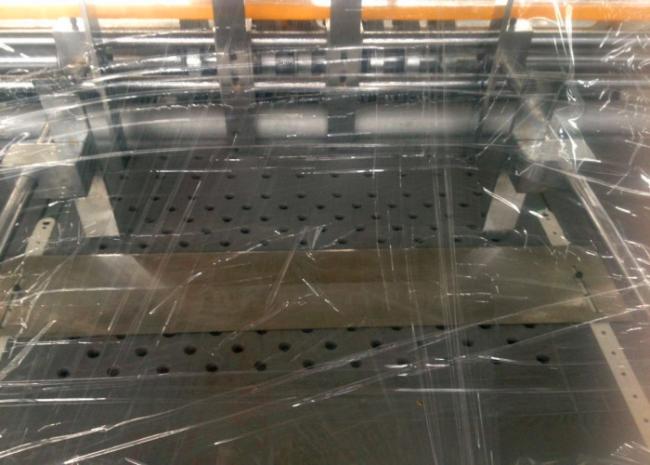

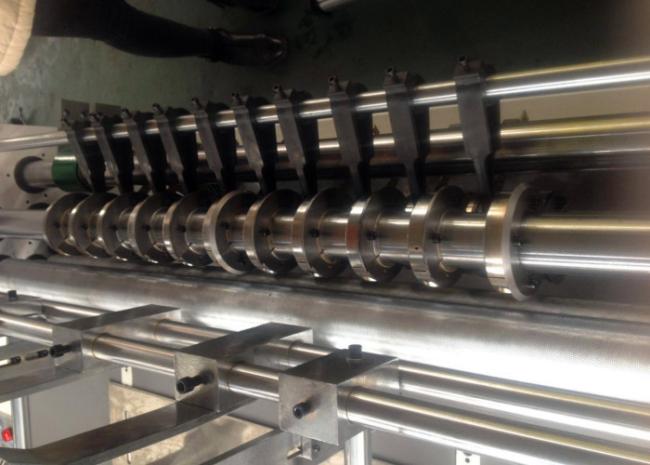

The machine Pictures (automatic partition machine)
