Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine
Price:
USD 5900 Per Set
MOQ:
1 Set
Delivery Time:
60-80 Work Day
Brand:
ZhaoLi Brand
Product Description
Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine
The flexo printer slotter machine function and feature
1 The electrical appliances all adpot the famous brand electrical appliances . such as servo moter , PLC , Phase and so on .
2 The main drive gears adopt 40 Gr 20GrMoTi high frequency quenching finishing .
3 All shaft chrome plating processing ,enchance show that surface hardness .
4 Host motor machine adpots PLC man - machine interface control , the host using variable frequency drive .
5 Gear using circulating spary lubrication drive .
6 Feed department optional front paper board .
7 Module design , multicolor printing unit arbitrary combination .
The automatic water ink printer slotter machine main parameter .
| Item | 2800 * 1600 model type |
| Wallboard medial width | 50 mm |
| The diameter of the anilox | 530 mm |
| Max feeding paperboard size | 2800 mm*1600 mm |
| Max effective printing size | 2600 mm*1600 mm |
| Min process paperboard size | 350 mm*700 mm |
| Thickness of the printing plank | 7.2 mm |
| Max speed | 150 pieces/min |
| Economical speed | 120 pieces/min |
| Precision of the printing | ±1 mm |
| Precision of the slotting | ±1.5 mm |
| Max depth of slotting | 300 mm |
| Min grooving space | 300mm*100mm*300mm*100mm |
| Printing rolling axle circle-oriented regulating | 360 degree revolving |
| Printing rolling axle-oriented regulating | +/-10mm |
| Power | 22 kw |
| Power supply | as customer’s wish |

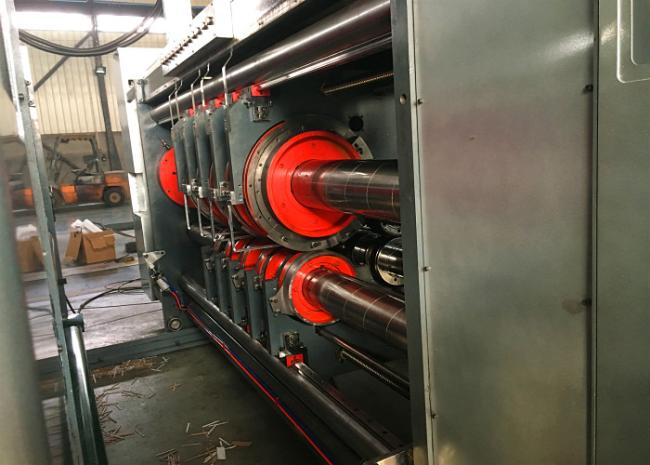

The machine real picture ( all computer control Slotting department )
