Packing Machine For Automatic Clapboard Assembly / Used Partition Assembly Machine
Packing Machine For Automatic Clapboard Assembly / Used Partition Assembly Machine
The machine main features
1 This machine electric appliance all adopts famous brand domestic and overseas .
2 It can as clients requests to custom - made .
3 it is new condition type machine , used glass , china ware , friuts and so on . it is easy to operate . reduce the labor force .
4 PLC control pannel , easy to adjust the whole machine .
5 Used the high quality law material for whole machine frame .
The automatic partition assembler machine main parameter
| power | 280v/ 50 hz | Not include air compressor |
| Host belt speed | 15-30m/min | |
| Clapboard combining form | 3*(1~n) | In double working station |
| Longitudinal clapboard feeding track No. | 6 | |
| Horizontal clapboard feeding track No. | 1~12 | |
| Clapboard size | Length L=120~500mm | Clapboard thickness 1.5~7mm |
| Height H=75~200mm | ||
| Width W=120~500mm(double station) | Width W=120~900(single station) | |
| Lattice space C=40~150mm | ||
| Lattice space D=30~150mm | ||
| Working speed | 30-60groups/min | Working speed is connected with clapboard size and clapboard combining form |
| Machine weight | 3000kg | |
| Overall dimension | 5500x2200x2000mm | |
|
Note: when width of clapboard is greater than 450mm, the machine just can work in single station. Air compressor or air compressor station requirement: 6kgf/cm². For the special type of clapboard, we can customize the machine as client’s wish. |
||

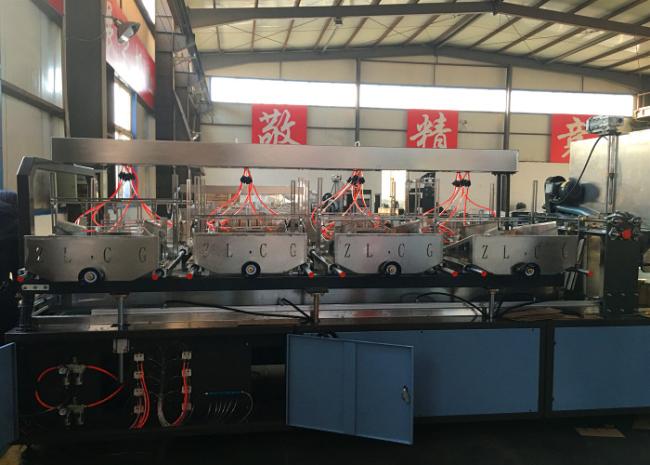

The workshop details machine real pictures
