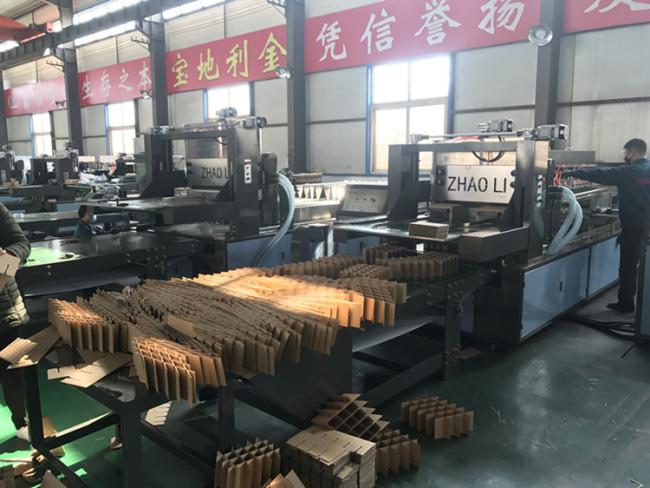

Automatic Corrugated Partition Assemble Machine 350v 50HZ 10kw Power
Corrugated Partition Assembler Machine / Automatic Assembler Machine
Introduction
This machine has beautiful appearance and compact structure. Adopting electric control switch, pneumatic locking, PLC control and man-machine interface. This machine is easy to operate, stable running and high production efficiency , used in beverage, wine, fruit, medicine and electronic products etc. clapboard assembler packaging . It is the ideal equipment of each carton industry.
Structure Features
1Suitable for the auto insertion of all kinds of carton clapboard.
2Vertical manual feeding, landscape orientation using servo feeding, quick and accurate .
3Longitudinal and transverse to cross the two pieces of paper at the same time.
4Landscape orientation feeding worktable lifting adopts electric adjustment .
5Electric adjust the clapboard height in landscape orientation .
6Output in double work positions, high efficiency and energy saving.
7Touch screen input control, electric to adjust the clapboard parameters .
8Comprehensive using of pneumatic and electric control, to ensure the advancement of machine control .
9Using compressed air storage tanks for gas centralized supply, gas supply pressure is stable, enough gas source. The gas devices get the gas from the primary tracheal, independent control, no influence each other.
10Equipped with fault detection device, auto stop the machine when paper blocking .
| Power supply | 380V/50Hz | 3 phases - 4 lines |
| Power | 10 KW |
Not including the air compressor |
| Host belt speed | 15-30 m/min | |
| Clapboard combining form | 4*(1~N) | In double working station |
| Longitudinal clapboard feeding track number | 9 | |
| Horizontal clapboard feeding track number | 20 | |
| Clapboard size | Length L=120~1550mm | 1.5~7mm |
| Height H=70-510mm | ||
|
Width W=120~650mm (double station) |
Width W=120~1300mm (single station) |
|
| Lattice spacing C=50~150mm | ||
| Lattice spacing D=30~150mm | ||
| Working speed | 30~50 groups / min | Working speed is connected with clapboard size and clapboard combining form . |
| Machine weight | 3000KG | |
| Overall dimension | Length * Width * Height :5500*2200*2000 mm | |
|
Note : 1. when the width of clapboard is greater than 450mm , the machine just can work in single station . 2. Air compressor or air compression station requirement : 6kgf/cm2 . 3. For the special type of clapboard , we can customize the machine as client’s wish . |
||
