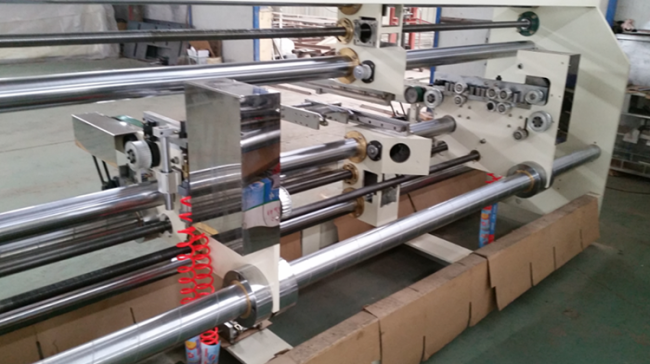

Semi Auto Two Pieces Stitcher / Carton Box Stitching Machine CE Listed
Semi Auto Two Pieces Stitcher / Stitching Machine
Main parts and function
★ WEINVIEW touch-screen operation, the parameters (nail nails, nail number., tailgate) transform is convenient and quick.
★ It adopt in PLC control system.
★ Photoelectric proximity switch using France schneider brand.
★ The Delta servo motor drive, high precision, reduce mechanical failure rate.
★ Adopt pneumatic components such as cylinder, trachea, trachea joint one hundred million brand in zhejiang province.Durable, not easily damaged.
★ Nail head made of special steel hardness, not easy damaged.
★ Single screw /, double nail / /, strengthen nails / / / / / / (two head is double nail middle is single nail) one-time complete, convenient and quick to suit the different needs of different customers to nail.(please indicate in advance when need to strengthen nails buyers)
★Transform the carton size and adjust from nail only need a minute to complete, can effectively save time convenient operation.
★ Front end paper automatic counting, is equipped with photoelectric sensors on the feeding table, feed automatically rise.
★ Backend with automatic counting function, completes the product according to set the number of cartons (1-99) fold, to the end of the mechanical, convenient packing banding.
★ Solenoid valve adopts international brand's guest.
★ Bearing adopt People-oriented company(C&U).(some of bearing are imported)
★ speed:400nail/minutes .
★ space of screw:20-160mm adjustment easily(Min20mm Max160mm)
★ The workbench lifting height effectively:600mm
| NO: | Name: | Brand: | Original: | Remark: |
| 01. | Stitching head servo motor | Delta | TAIWAN | 2 sets |
| 02. | Feeding paper servo motor | Delta | TAIWAN | 2 sets |
| 03. | PLC | Delta | Taiwan | 1set |
| 04. | Cocontactor | Schneider | French | |
| 05. | Intermediate relay | Schneider | French | |
| 06. |
Cylinder and pneumatic parts |
Easun | ZHEJIANG | |
| 07. | Solenoid valve | AirTAC | TAIWAN | |
| 08. | Touch screen | WEINVIEW | TAIWAN | 1 piece |
| 09. | Stitching head | TAIWAN | 1 set | |
| 10. | Bottom die of blade |
German Alloy steel |
||
| 11. | Switch back to zero | AUTONICS | Korea | |
| 12. | Photoelectric switch | AUTONICS | Korea | |
| 13. | Gear Reducer Motor | GPG | TAIWAN | 5 sets |
| 14. | Worm reduction gear | People | SHANHAI | 1 set |
| 15. |
Hydraumatic MOTOR |
HANGZHOU | 2 Sets | |
| 16. | Bearing | (C&U) | SHANGHAI |
