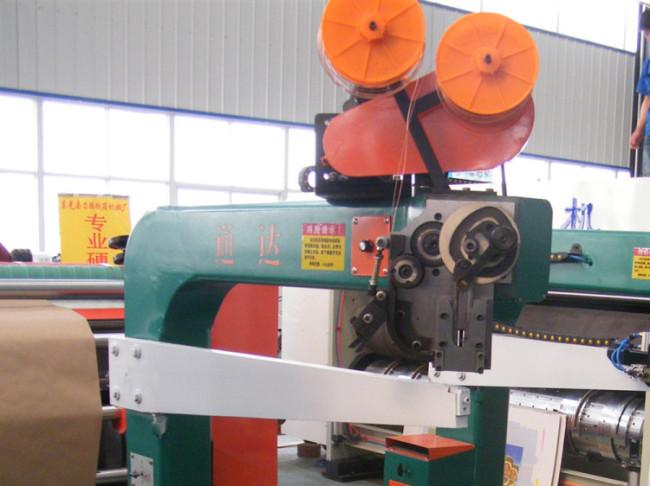

Professional Manual Carton Box Stitching Machine / Stapler With Servo Motor

Manual Carton Box Stitching Machine / Stapler With Servo Motor

Machine Characteristics:

1 This machine adopts servo motor .it has the advantages drive the urgent stop, start the action quickly . Improve the accuracy of stitching machine and service life

2 Have a speed control function.it can freely adjust ,150-450 nails/min .

3 The stapler head Simple structure. Easy maintenance. Using cam. Cutters use alloy blades, connecting rod bearing connections, reduce wear, increase the service life

4 The feeder department adopts servo control ,the nail distance accuracy .the worker can easy to operate .

Main parameters:

Operation:

1. Frist, set up the page, the size of box height. Determined by the touch screen keys.

2. Step parameter do not move(step parameters that is step parameters are entered automaticlly after a set number of conversions.)

3. Set up the nail number and press the enter key.

4. Push plate location dimension:(flap+box height), use a ruler to measure a cover combined with box height dimensions, the press foeward or reverse keys. See the front side of the plate corresponds to the size of the ruler, and then press the set zero position on the touch screen.

5. When the operating of the machine, only step one time pedal, and make a number of ordered set, start to nail, use the left hand slightly push the box and contact with supporting arms. To prevent nails are not on a line.

6. Manually pull boxes(common operations)and automaticlly pull box can switch on the touch screen. Only press the single action and continue key.

7. If there is not pushing plate or nail, turn off the power to restart. Note after you strat the push plate dimensions must be reset, press the zero key.

8. This machine manx work surface smaller than the original model lenght 20cm(e.g.: 1200 type max work surface is 1.0m) the width of box more than 9 cm, flatmore than 9cm, seeting the distance nail can not exceed 10cm under high speed.
