Vacuum Adsorption Feeder Corrugated Box Fold and Glue Packing Machine / Carton Box Packing Machine
Vacuum Adsorption Feeder Corrugated Box Fold and Glue Packing Machine / Carton Box Packing Machine
Machine Function Introduction
This machine including three parts , Automatic Feeding Part Folding and Gluing Part Stacking and Counting Part .
1 Automatic Feeding Part
(1)Vacuum suction feeding to feed wrapping paperboard easily .
(2) Quality electromagnetic clutch and brake adopt , feeding section controlled independent and operation is easy .
(3)scorer wheel adjustable suit for 2-8mm thick paperboard
(4)second creasing structure can impress againe the paperboard which is not creased well .
2 Folding and Gluing Part
(1) Simple structure and high resatblelity , glue quantity adjustable , cleaning easily .
(2)Adopt Stainless steel glue wheel , long using life and saving glue cost .
(3)Adopts imported high quality rubber belt , automatic folding .
(4)With paperboard recitify device and creasing recitify device .
3 Stacking and Counting Part
(1) Stacking and Counting high quality structure and operate stability .
(2) Digital control , operation easily . Automatic counting .
(3) With correcting function .
(4)Paperboard counting and putout by pneumatic , stable and quickly .
Parameter
| Model | ZL 2800 * 3200 mm |
| Max paperboard | 1600 * 2600 mm |
| Min paperboard | 300 * 800 mm |
| Overall size | 15000×3500×1500mm |
| Power required | 11.5 kw |

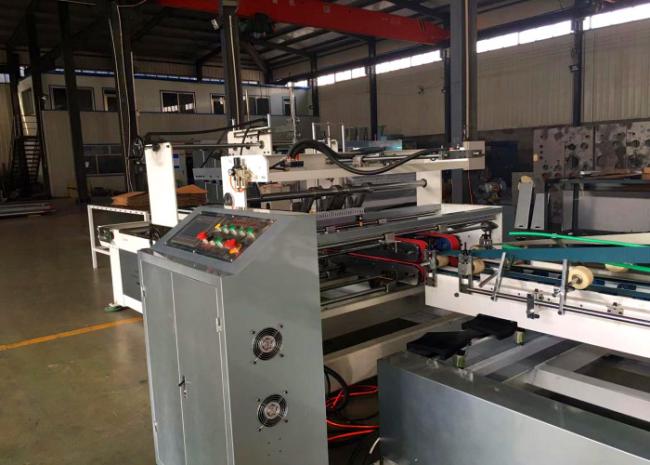

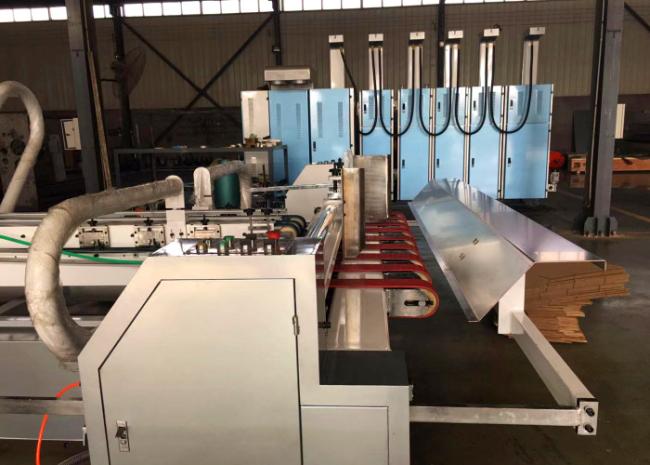

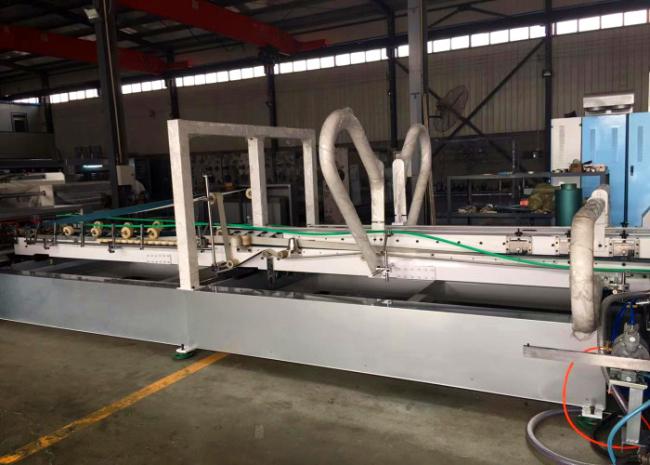

Folder and gluer machine pictures
