2200 X 1100 MM Model Corrugated Carton Box Folder And Gluer Machine / Paperboard Carton Packing Machine
2200 X 1100 MM Model Corrugated Carton Box Folder And Gluer Machine / Paperboard Carton Packing Machine
Automatic carton box gluer Machine Main Features
1 Automatic vacuum adsorption Feeding paperboard section
(1)Aopts Vacuum suction feeding system to feed paperboard , speed is high and working condition is stable .
(2) The Feeding section controlled by independent , And Adopts quality electromagnetic clutch and brake , make the whole machine operation easily .
(3)The suit for thickness of paperboard is 2-8 mm of using scorer wheel .
(4) This machine have second pressure for not creaser line .
2 Autimatic carton box Folding and Gluing section
(1) The automatic folder and gluer machine used cast iron solid frame , automatic glue supply , cleaning easily .
(2)Adopt Stainless steel glue wheel , ensure the glue roller high quality . using long life .
(3)This machine is equipped with correction device , even have a little mistake . it can correct again .
3 Stacking and Counting Part
(1) High quality of stacking and counting structure .
(2) Digital control , Automatic counting and gluing .
(3) With second correcting function .
(4)Paperboard counting by pneumatic output , Machine working stable and quickly and operation easily .
Automatic folder and gluer machine main Parameter
| Model | ZL 2200 * 1100 mm |
| Max paperboard | 2200 * 1100 mm |
| Min paperboard | 300 * 800 mm |
| Overall size | 15000×3000×1500mm |
| Power required | 11.5 kw |

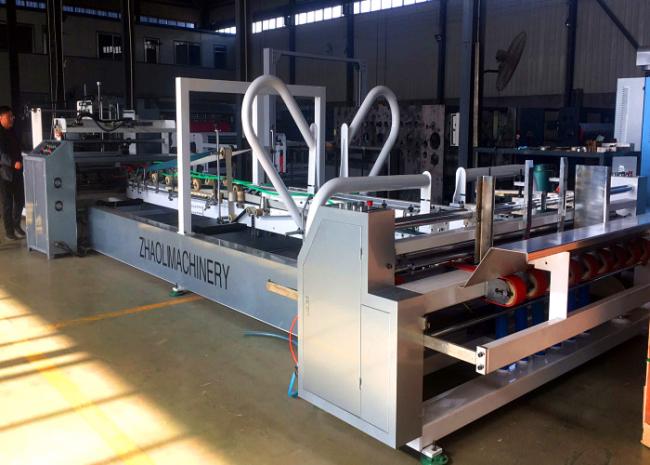

Automatic Folder and gluer machine deatils real photo
