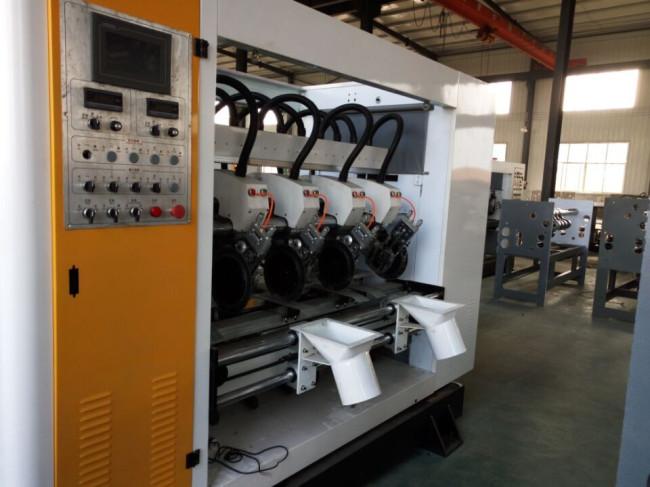

Automatic Cardboard Thin Blade Slitter Scorer Machine For Corrugated

Automatic Cardboard Thin Blade Slitter Scorer Machine For Corrugated

Description:

The thin blade slitter scorer machine is an important component in corrugated production line, is is used for cutting corrugated board and make creasing. It is practical and easy to operate. Generally, the feeding width is 1600mm, 1800mm, 2200mm, but we can customize for you. We have model 4 slitter 6 scorer, and model 5 slitter 8 scorer. The blade and scorer are electric adjusted, so it is used very conveniently.

Machine characteristics:

1. Both of slitter and scorer are electric adjusted, also the blade is pneumatic lifting.

2.The slitter scorer machine has the function of electric left-right retification to cooperate the position of the paper sheet.

3.The blade is tungsten carbide, sharp and durable, it can be used over 800 millions meters, also it has the function of auto sharpening.

4.The scoring part adopts 5 points scoring, scoring distance in phase adjust, blazonary and easy to bend the carton sheet.

5.The thin blade slitter scorer use the synchronous belt transmission, so the machine is low noise and easy to operate smoothly.

6.The space of slitting and scoring are both electrically adjusted, automatic locking,fast order changing . The blade is pneumatic lifting.

7.Double smooth shaft guide way, stable operation; inlay O-ring seal, clean and dust-proof.

8.Self-researched nut rotation technique with the automatic locking function, simple and useful.

9.Colorful touch screen, simple operation.

10.The control system is composed of high performance PLC and frequency converter, energy saving, stable and reliable.

11.With the waste suction on the machine.

12.The slitter scorer machine can keep the speed with production line automatically. It can change the order quickly.

Machine specification:

The floor layout and the electric drawing is provided after sales for your installation. The warranty of the machine is one year, but not including the wearing parts.
