CE Certification Semi Automatic Two Pieces Carton Box Stitching Machine / Nailer Machine
CE Certification Semi Automatic Two Pieces Carton Box Stitching Machine / Nailer Machine
1 Stitching machine main intriduction
* Touch screen , easy to change carton box main parameter . ( like distance of stitching , number of stitching )
* Electric adopts Schneider from Germany .
* Using servo motor drivng , brand is Delta , high precision .
* Cylinder , tube , tracheal connector , other pnuematic components adopt ENSUN . Durable , not easy damaged .
* Stitching head made of special steel , not easy - damaged .
* This machine can single nail , double nail and strength nail finished in one time .
* Change carton box and adjust distance of nail in one time , easy operate .
* Former paper feeding part have automatic counting , use photoelectic sensor of feeding paper table , when feeding paper , the working table can automaticlly rise up .
2 Stitching machine main technology parameter .
| Model | ZL 3000mm |
| Max.Paper size(A+B)*2 | 6000mm |
| Min.Paper size(A+B)*2 | 1060mm |
| Max.Carton length A | 1850mm |
| Min.Carton length A | 350mm |
| Max.Carton width B | 1850mm |
| Min.Carton width B | 180mm |
|
Max.Height D |
2000mm |
|
Min.Height D |
150mm |
|
Max.Nail the tongue width |
40mm |
| Nail distance | 30-160mm |
| nail of number | 1-99 stitches |
| Nial speed |
400nails/min |

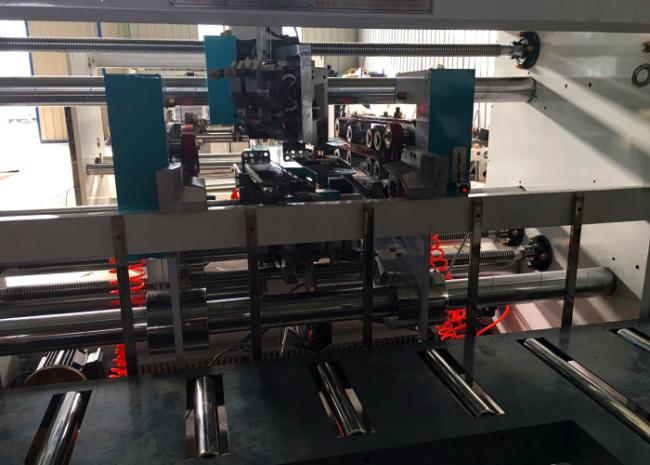

3 Stitching machine details picture
