ZL 3000 Model Corrugated Box Stapler Machine / Carton Box Stitcher Packing Machine
ZL 3000 Model Corrugated Box Stapler Machine / Carton Box Stitcher Packing Machine
1 Stitcher machine main features
# . The ending have automatic counting function too, the ready stitched boxes can be send to the end of the machine in bundle, the number of one bundle can be set (one bundle can be 1-99 pieces), it is convenient to bundling.
# . Solenoid valve adopts Taiwan AirTAC
# . Bearings adopt C& U , some adopt imported brands .
# . This stitching machine adopts big wire plate sending wire automatically .
# . Stitching speed : 400 nails / min
# . Distance of nails : 30-160 mm adjust optional
#. The efficiently hieght of working table : 700mm
2 Stitcher machine main technology parameter .
| Model | ZL 3000mm |
| Max.Paper size(A+B)*2 | 6000mm |
| Min.Paper size(A+B)*2 | 1060mm |
| Max.Carton length A | 1850mm |
| Min.Carton length A | 350mm |
| Max.Carton width B | 1850mm |
| Min.Carton width B | 180mm |
|
Max.Height D |
2000mm |
|
Min.Height D |
150mm |
|
Max.Nail the tongue width |
40mm |
| Nail distance | 30-160mm |
| nail of number | 1-99 stitches |
| Nial speed |
400nails/min |
| Machine weight | 4 ton |
|
efficient height of the working table |
700mm |

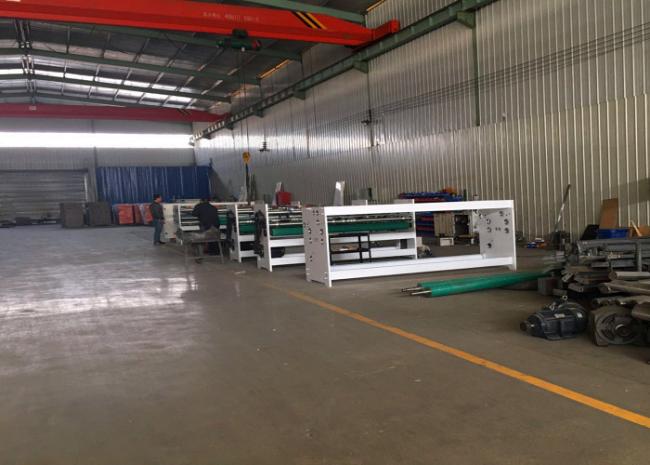

3 Stitcher machine workshop picture
