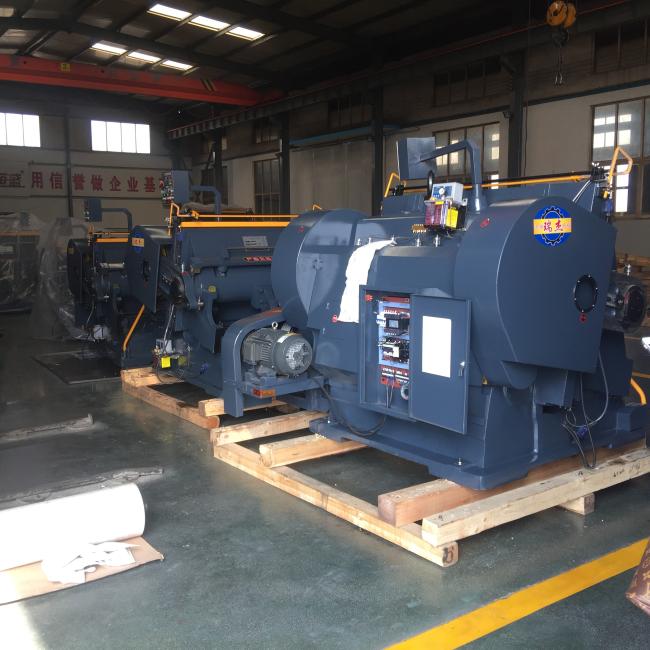

Semi Auto Carton Die Cutting Machine , Flat Die Cutting Machine CE Listed
Semi Auto Carton Die Cutting Machine ,flat die cutting machine
Specification
| Model | Inner chase size (mm) |
Speed (strokes/min) |
Max.rule length(m) | Motor power | Overall dimension (mm) |
Machine weight (kg) |
| ML750 | 750X520 | 25±2 | ≤15 | 2.2kw-6H 380V | 1500x1320x1600 | 2000 |
| ML930 | 930x670 | 23±2 | ≤25 | 3kw-6H 380V | 1700x1550x1700 | 3000 |
| ML1040 | 1040x720 | 20±3 | ≤30 | 4kw-6H 380V | 1760X2000X1750 | 3500 |
| ML1100 | 1100X800 | 22±2 | ≤30 | 4kw-6H 380V | 2050x2030x1700 | 4000 |
| ML1200 | 1200x820 | 22±2 | ≤35 | 4kw-6H 380V | 2150x2030x1700 | 4500 |
| ML1300 | 1300x920 | 15±2 | ≤40 | 5.5kw-6H 380V | 2400x2100x1950 | 5600 |
| ML1400 | 1400x1000 | 15±3 | ≤45 | 7.5kw-4H 380V | 2450x2100x2000 | 6500 |
| ML1500 | 1500x1050 | 14±2 | ≤45 | 7.5kw-6H 380V | 2550x2100x2100 | 7500 |
Product alias: creasing machine, beer machine, stuffy box machine, slot machine.
Packaging materials: paper products, plastics, leather, packaging type.
Applicable objects: alcoholic beverages, carbonated drinks, hair care products, fresh milk, milk tea, tea bags, yogurt, oral liquid, juice drinks, cosmetics, toothpaste, sauces, skin care products.
Applicable industries: food, toys, clothing, chemicals, catering, daily chemicals, tobacco and alcohol, medicine, gifts, handicrafts, home textiles.
Uses: Pressing and cutting of paper products and plastic products.
1.Sliding bearings are made of high quality alloy copper, thus to get effect of anti-frietion and shake reducing.
2.High strength due to one piece casting by using top-ranking material for machine body.
3.Single plate electromagnetic clutch is sensitive and reliable.
4.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
5.Flysheel torque is big, so the pressure is larger.
6Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8,Can equip inner and outer movable frame and centrailzed lubrication device.
Note: electric parts is Omron and Schneider
