Automatic Rotary Die Cutting Machine For Cutting Corruaged Cardboard

Automatic Rotary Die Cutting Machine For cutting corruaged cardboard

Specifacation

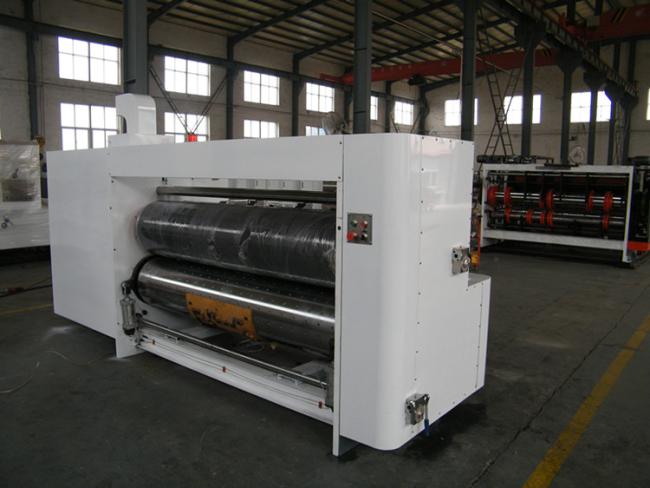

Die Cutting Department

• Die cutting roller for high quality steel materials, 30mm thickness, balance correction, hard chrome plating.
• Wallboard for high quality cast iron material, 50mm thickness, and large processing center production.
• Soft roll automatic grinding mechanism to increase pouches use rate, grinding 3-4 times.
• Linear speed automatic compensation, to ensure that each batch of carton die-cutting size exactly
• Imported polyurethane soft rubber cutting set, easy installation, die cutting 12 million times
• Mechanical soft roll move around 40 mm left and right, pads wear uniform

Feeding Department:

1.Adopt world's leading type of edge feeding system, feeding precision and speed is high, feeding wheel has long life, feeding speed can reach 10000pcs/hour,accuracy ±0.5mm

2. Phase controlled by microcomputer, can 360 ° phase adjust, fast and accurate

3. The front plate adopt manual adjustment, side plates adopt computer adjustment

4. Paper guide roller has rubber grooved surface, to prevent the damage of cardboard strength, increase the accuracy of feeding paper

5. Paper pusher, slider is hard aluminum alloy material, light and wear-resisting
