Manual Carton Box Die Cut Creasing Machine / Easy Operation Machine For Board Die Cutting Creasing
Manual Carton Box Die Cut Creasing Machine / Easy Operation Machine For Board Die Cutting Creasing
1 Machine main usage
Die Cutting Machine or Platen Punching & Creasing Press particularly designed for Die Cutting, Scoring and Creasing Work on Paper, Linoleum, Cardboard, Corrugated board, Fireboard, Cork, Leather, Plastic and PVC Materials etc. Most Handsome and compact patronized model requires Minimum Floor-Space.
Minimum "Make-Ready" Time and provides sufficient hourly production.
2 Machine main features
^ .Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
^ .Flywheel is with big moment of force and large pressure.
^.High strength due to one piece casting by using top-ranking material for machine body.
^.Single plate electromagnetic clutch is sensitive and reliable
^.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
^.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
^.Safety system is reliable.
^.Can equip inner and outer movable frame and central lubrication device.
3 Die cutter machine main parameter
| Model | Max inner size | working speed | Ccreasing &Cutting length | Motor power | weight |
overall Demensions (L×W×H) |
| ML 1600 | 1600X 1250 mm | 16±2 (strokes/min) | <62m | 11 kw | 11000kg |
2170 X 2560X 2130 mm |

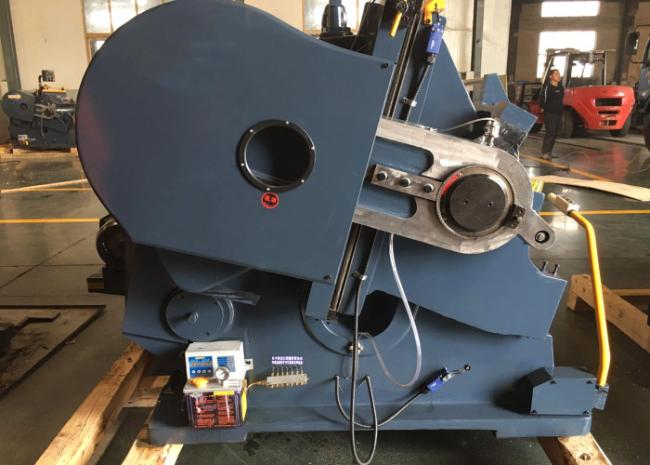

4 Die Cut creasing machine details picture
This machine have many specifications , if u want to get more infromations or videos ,pls timely contact with me , Thanks .
