Model MY 1500 Carton Die Cutting Machine PLC Control With Speed 5000 Sheets
Model MY 1500 Carton Die Cutting Machine PLC Control With Speed 5000 Sheets
1 Die Cutter and creaser Machine introduction
1 ) It is by imported PLC controlling , touch screen adjustment .
2 ) Servo motor driving automatic feeder feeding , it can freely to adjust the feeding paperboard size .
3) The left and right baffle can be adjusted by electric , it is so easy and accurately to adjust .
4) The whole wallboard of machine and flat table all used high strenghth cast iron , ensure the pressure of die cutting .
5 ) And the die cutting plate is easy to change , improve the quantity of production .
2 Die Cutting and creaser Machine main Parameter
| Model | MY 1500 mm |
| Max Paper Size | 1510 X 1120 mm |
| Min Paper Size | 450 X 500 mm |
| Max Die Cutting Size | 1490 X 1100 mm |
| Die Cutting Pressure | 380 T |
| Max Die Cutting Speed | 5000 sheets / h |
| Corrugated Paper | 3-10 mm |
| Power | As customers wish |

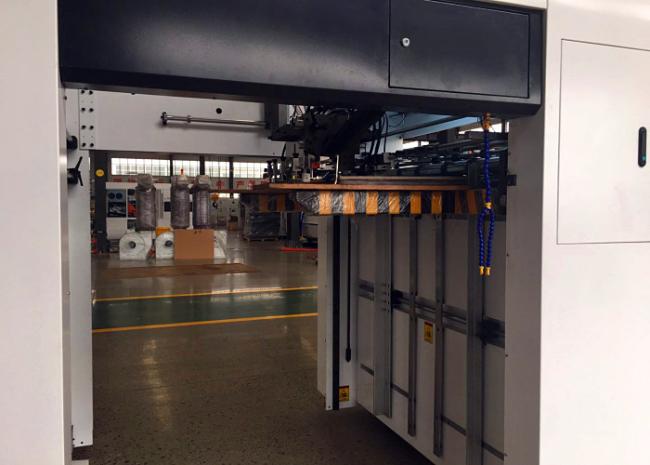

3 Die Cutting and creasing Machine real picture ( automatic feeder )
