I. Introduction

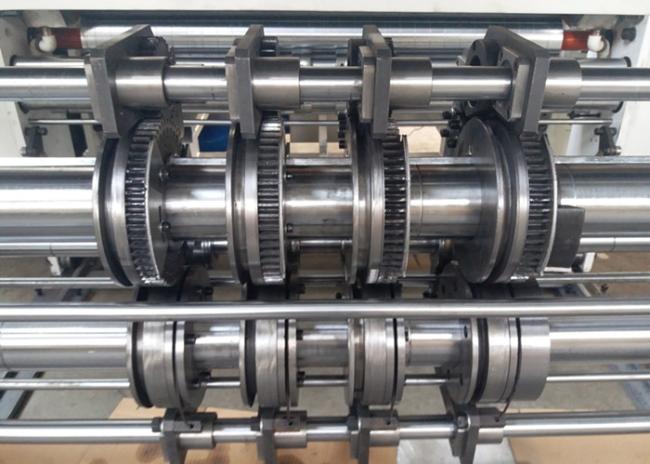

This machine is manual operation and vacuum absorption auxiliary lead edge feeding system. It can slot, cut the corner, cut the extra side and press the lines of the corrugated cardboard. The slotting width is electric adjustment, and it attached a ruler that the scale can be read easily. The phase adjustment of slotting part is planetary gear structure. The machine adopts 360°electric adjustment. The up and down slotting knives and creasing knives can move synchronously(use exclusive tool to adjust left and right). This small machine is easy to operate and repair easily which is specialized for slotting small boxes.

II. Main structure and features

1. Feeding paper roller adopt patterned roller, feeding paper roller pressure adjustment adopt eccentric wheel adjust and left-right eccentric wheel, adjust the pressure synchronous

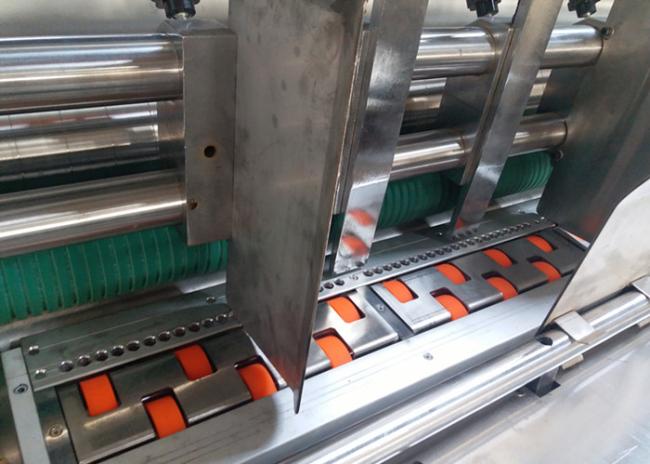

2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, can fit to every kinds paperboard, and sending paper stable and accurate.

3. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator(speed adjustable freely), adopt Jintiao frequency converter.

4. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.

Technology Parameter
