Carton Box Automatic Clapboard Partition Assembly Machine CE Certification
Zhaoli Brand Carton Box Automatic Clapboard Partition Assembly Machine
1 The machine Function and Features
* This is new condition device automatic clapboard assembly machine , This machine takes place the traditional manual operation made . it is very welcome at home and aboard .
* Partition assembly machine is used to make inser corrugated paperboard , it is used in packing box , such as glass , fruits , ceramic and so on .
* Longitudinal and transerse to cross the two pieces paperboard at the same time .
* Output in double position ,high work effort , improve the production .
* electric adjust the clapboard height in landscape orientation.
* partition assembler is touch screen control, electric adjust the clapboard parameters.
*comprehensive using of pneumatic and electric control, to ensure the advancement of machine control.
*The partition assembler machine using compressed air strorage tanks for gas centralized supply, gas supply pressure stability, enough gas source. the gas device get the gas from the primary tracheal, independent control, no influence between each other.
*The partition assembler equipped with fault detection device, auto stop the machine when paper blocking.
* PLC system ,easy operation
* Design speed: 40-60sers/min
* Air pressure: common pressure 0.6-1.0Mpa
*Electric: 380V 50Hz 3phase 4line.
*Machine working direction: as per customer plant
2 Machine main technological parameter
| power | 280v/ 50 hz | Not include air compressor |
| Host belt speed | 15-30m/min | |
| Clapboard combining form | 3*(1~n) | In double working station |
| Longitudinal clapboard feeding track No. | 6 | |
| Horizontal clapboard feeding track No. | 1~12 | |
| Clapboard size | Length L=120~500mm | Clapboard thickness 1.5~7mm |
| Height H=75~200mm | ||
| Width W=120~500mm(double station) | Width W=120~900(single station) | |
| Lattice space C=40~150mm | ||
| Lattice space D=30~150mm | ||
| Working speed | 30-60groups/min | Working speed is connected with clapboard size and clapboard combining form |
| Machine weight | 3000kg | |
| Overall dimension | 5500x2200x2000mm | |
|
Note: when width of clapboard is greater than 450mm, the machine just can work in single station. Air compressor or air compressor station requirement: 6kgf/cm². For the special type of clapboard, we can customize the machine as client’s wish.
|
||

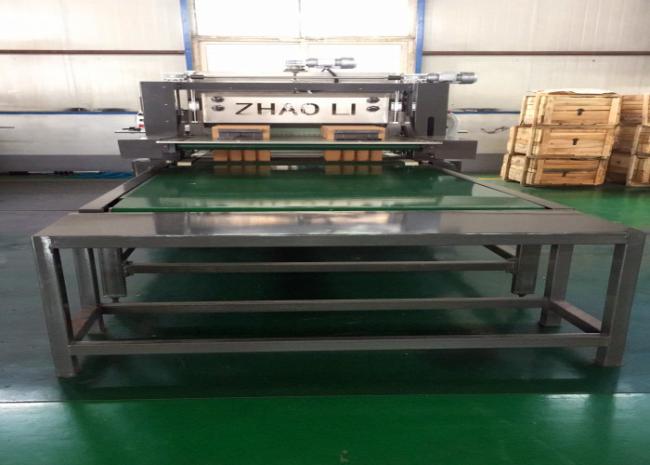

3 Machine Real Pictures
