Automatic Paperboard Partition Clapboard Assembly Machine 1200 X 800 - 8 N Model
1200 X 800 - 8 N Model Automatic Paperboard Partition Clapboard Assembly Machine
* Machine main introduction
1 , This machine main used in packing of galss , fruit , ceramic and so on .
2 , It can work double positions , impove the raise production .
3 , PLC Control machine , easy to operate
4 , Vacuum sucker adsorb feed cardboard lengthways
5 ,Pneumatic feed cardboard crosswise,right and fast
6,Electric adjust lengthways feeding cardboards device go up and down
7,Electric adjust crosswise feeding cardboards device go up and down
8, Electeic adjust crosswise grating height
9 ,Crosswise and lengthways feeding paperboards can work at same time
10,Adpot for every carton boxes,grating,parrying
11, Double station feed cardboard,double work efficiency
12, Pneumatic and electric control ensure the machine advanceme
13, Adpot for compressed air hold-up vessel central gas supply,air pressure reliable
14 ,Testing faulting device,if has problem during the operation of machine,then will autoamtic stop work
2 , Main parameter of machine
| power | 380v/ 50 hz 3phase - 4 lines | Not include air compressor |
| Host belt speed | 15-30m/min | |
| Clapboard combining form | 3*(1~n) | In double working station |
| Longitudinal clapboard feeding track No. | 8 | |
| Horizontal clapboard feeding track No. | 1~12 | |
| Clapboard size | Length L=450~800mm | Clapboard thickness 1.5~7mm |
| Height H=70~350mm | ||
| Width W=120~400mm(double station) | Width W=120~1200(single station) | |
| Lattice space C=60~150mm | ||
| Lattice space D=30~150mm | ||
| Working speed | 40-50groups/min | Working speed is connected with clapboard size and clapboard combining form |
| Machine weight | 5000kg | |
| Overall dimension | 5500x2200x2000mm | |
|
Note: when width of clapboard is greater than 450mm, the machine just can work in single station. Air compressor or air compressor station requirement: 6kgf/cm². For the special type of clapboard, we can customize the machine as client’s wish.
|
||

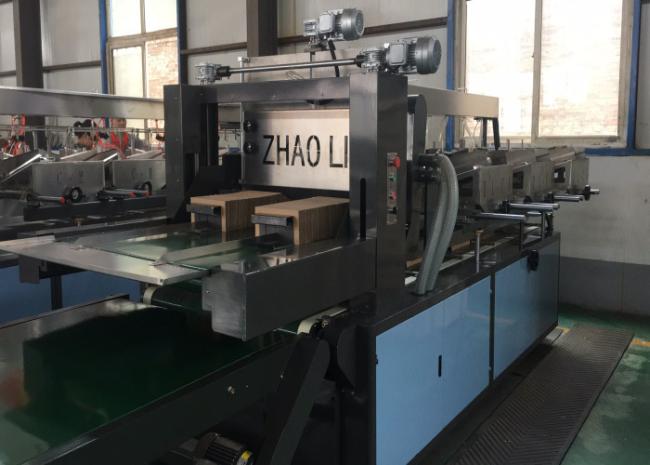

3 Machine Real Pictures
