Semi Automatic Flute Laminating Machine / Cardboard Making Machine
semi automatic flute laminating machine/cardboard making machine
Machine introduction:
The new type servo laminator machine adopt double frequency conversion at the front and back of the machine, automatic
gluing,autoamtic washing gears, Photoelectric alignment, screw attached pressing, vacuum adsorption botton paper, labour
feeding paper, whole machine 8.8m, mainframe 3m, pressure transfer platform 5m, paper receiving platform1.2m, 28 pressure
rollers, 6 positioning belt, 1 synchronous belt, 3 Synchronous wheel, 14 paper pressing wheel, transfer platform is Stainless
steel double bridge stander, wheelbase adjustment bar adopts pressure bearing, worm wheel adjustment transmission shaft is
double dis double bearing and balance processing, all the main equipment parts adopt famous manufacturer from domestic
and foreign, long original product life long, good stability, and ensure the reliability of electrical components in the using
process.
Technology parameter:
| Model | 1300 | 1500 | 1600 |
| Max. working size | 1300x1100mm | 1500x1250mm | 1600X1250mm |
| Min. Working size | 360x360mm | 360x360mm | 360x360mm |
| Machinery speed | 0-100pcs/min | 0-100pcs/min | 90pcs/min |
| Power | 6kw | 6.5kw | 6.5kw |
| Laminating precision | ±1mm | ±1mm | ±1mm |
| Packaging size | 8.8X1.95X1.7m | 8.8X2.15X1.7m | 8.8X2.25X1.7m |
| Weight | 3t | 3.5t | 3.7t |

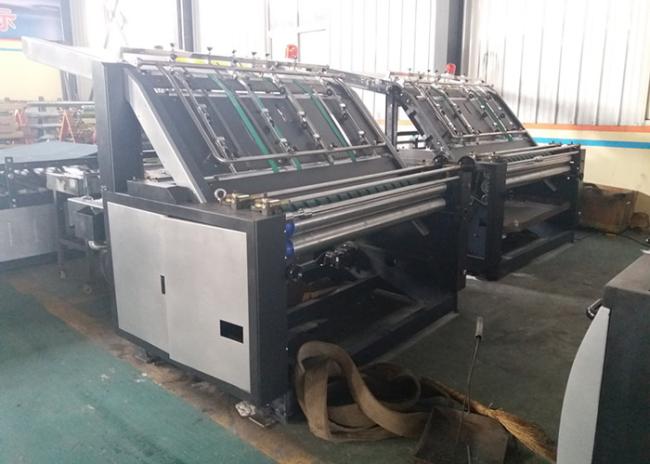

Machine pictures:
