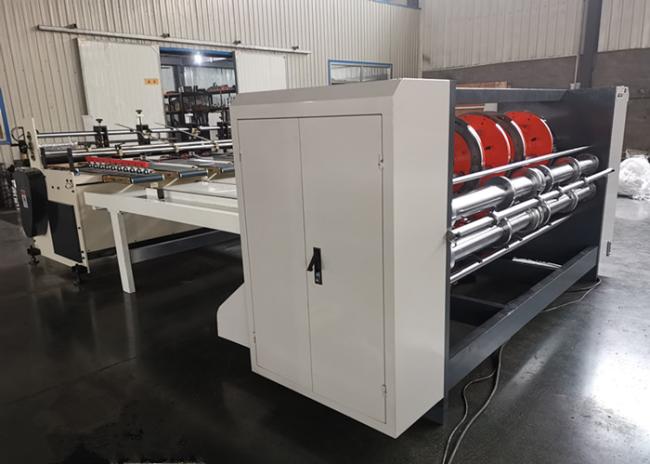

Corrugated Carton Flexo Slotter Machine / Creasing And Cutting Machine
corrugated carton making flexo slotter machine/creasing and cutting machine
Machine introduction:
FYQ series machine can finish slotting ,scorer and angle cutting on corrugated paperboard at on time Its main characteristic is single sheet manual feeding by chain ,even the frizzy paperboard acceptable.
All the transmission axle and roller are made by the high-quality steel; plated with hard chrome and grinded surface.
Axle treated by rigidity chroming electroplate, and nicety grinding, firmness durable. All the machine bearing was used
Harbin sealed ball bearing, which can guarantee the machine high speed running steadily.
Technological Parameters :
| Model | FYQ 1200X2400 | FYQ 1447X2500 | FYQ 1600x2500 |
| Max feeding board size | 1200X2400mm | 1447X2500mm | 1600x2500mm |
| Min feeding board size | 350x600mm | 400x700mm | 400x700mm |
| Depth of corner cutting | 300mm | 300mm | 300mm |
| Max speed | 60 pieces/min | 60 pieces/min | 50 pieces/min |
| Transmission | Chain feeding | Chain feeding | Chain feeding |
| Machine weight | 3000kg | 3300kg | 3600kg |
| Slotting width | 7.5mm | 7.5mm | 7.5mm |
