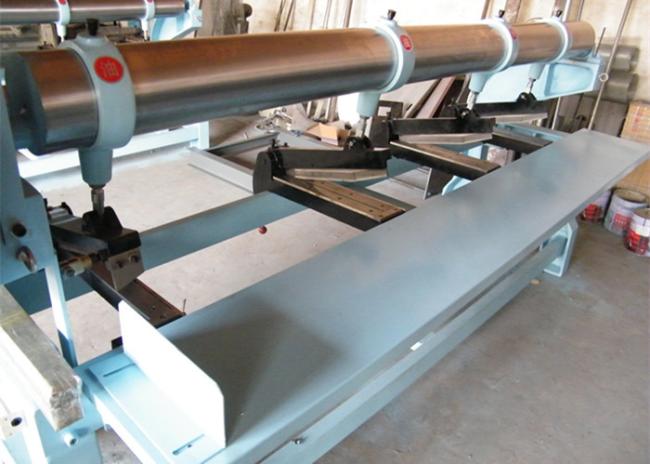

Four Link Slotting Corner Cutting Machine / Partition Slotter Machine
Corrugated Carton Making Four Link Slotting Corner Cutting Machine
Machine introduction:
The 2000mm, 2500mm, 3000mm model four links machine is used to slitting and corner-cutting every kind carton packaging box before binding. It is operate conveniently, accurate cutting and beautiful, it is the perfect machine in the carton production line.
Operating Principle:
This machine is driven by normal motor, and working by belt pulley and gear transmit the crankshaft connecting rod system. It finish the slitting and corner-cutting function by the drive of the knife installed on the upper knife holder and to carry out the upper and down cutting.
Technology parameter:
| Technical parameter | |||
| Model | QJ 2000 | QJ 2500 | QJ 3000 |
| Max.Paperboard size | 2000 mm | 2500 mm | 3000 mm |
| Slotting size | 7.5 x 330 mm | 7.5 x 330 mm | 8 x 330 mm |
| Slotting knife NO. | 3 | 3 | 3 |
| Corner cutting size | 0-60 x 330 mm | 0-60 x 330 mm | 0-60 x 330 mm |
| Speed | 40 times/min | 40 times/min | 40 times/min |
| Power | 1.5 kw | 1.5 kw | 2.2 kw |
| Machine size (mm) | 2300x1170x1500 | 2900x1170x1500 | 3500x1550x1560 |
| Machine weight | 800 kg | 1000 kg | 1200 kg |
