Automatic Carton Folding Gluing Machine / Corrugated Carton Making Machine
Automatic Carton Folding Gluing Machine/Corrugated Carton Making Machine
Function And Characteristic :
- Automatically finish the middle folding , meanwhile finish the glue of the two sides of the paperboard .
- Suitable range is wide , can be used in different sizes of cartons .
- Easy to operate and maintain .
- Automatic amend the carton right-angle degree .
- High speed of carton forming .
- Accurate suction and feeding paper .
- The second pressing makes the line more accurate .
- Good control and reduce waste .
- The second correction totally eliminates of scissors cuts .
- Accurate counting .
- The beating department makes the paper box with the good forming .
- Neat and accurate pile .
Main Technology Parameter :
| Model | HM-2400 | HM-2600 |
| max cardboard size | 1100mm x 2300mm | 1200mm x 2600mm |
| min cardboard size | 280mm x 800mm | 300mm x 800mm |
| max speed | 120 m/min | 120 m/min |
| installation area | 2800mm x 15500mm | 3000mm x 15500mm |
| power required | 8.0 kw | 10.5 kw |
PACKAGING :
plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixedwith container.according to customer requirements. according to customer requirements.
The normal package is plastic film(Size: L*W*H). If export to european countries,the wooden box will be fumigated.Ifcontainer is too tigher,we will use pe film for packing or pack it according to customers special request.
Our team:
Our company has the purchasing department, production department, technical department, inspection department, sales
department etc., perfect management mechanism , to improve the working efficiency and product quality.
In domestic sales, our domestic market includes Shanghai, Guangdong, Hunan, Hubei, Shandong and so on more than 20
sale offices.
Regarding the exported machines, we have special loading team, ensure the safety of the machine in the process of
transportation. We have data statistics personnel, to record the number of packages weight, dimensions of the machines
in the container, ensure the accurate data, provide convenience to the customer when pick up the goods in the port of
destination. We have special engineers for overseas installation, they have rich experience for installing the machines,
got a good reputation by the customers.

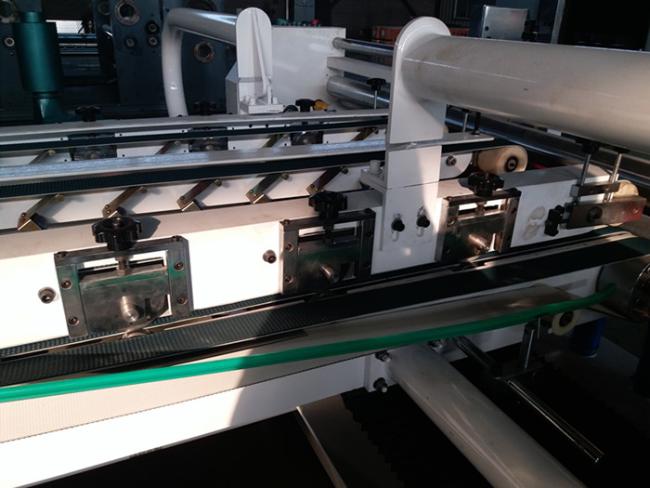

Machine pictures:
