Carton Box Lead Edge Flexo Printing And Die Cutting Machine PLC Control

PLC Control Carton Box Lead Edge Flexo Printing Slotting Die Cutting Machine

1 The whole machine main function and introduction

(1)PLC touch screen control , including automatic count , speed , display number , skip paperboard feeder , alarm and so on  .

(2)Choose high quality raw material  and machine componets , all driving rollers of whole machine , adopt high quality steel , through correct and power balance dealing ,  the all roller through high frequency quenching and grinding  , chorm - plating  .

(3)Main driving gears all adopt 40 CR , high quality material , through high frequency grinding , high precison of gears , wear - resistance , transfer smoothly and reliable .

(4)Main driving bearing adopt Haerbin famous brand . the quality is reliable .

  (5) Main control elelctrical appliances adopts famous brand , Chint from Zhejiang .  We can as customers requests to choose electrical brand .

  (6) Keyless connection ring is applied to reduce center wear and maintain accurate overprinter for long term

  (7)Reture back , automatic reture zero .

  (8)Main motor start protection , if the main motor don't fasten , the main motor will not start , And to prevent the worker make disoperation .

(9)The whole machine every department haveautomatic  combine and dependent separate function . electrical motor walking , pneumatic locking , The machine walking , it continuous alarm function , ensure the operator life safe .    automatic brake  , make sure the mahcine position don't move .

 (10) emergency stop protection , every unit set urgency stop button , it can fastly stop the machien , prevent the machine inside move . more protect the machine and operator .

(11) The feeding roller , press printing roller ,rubber roller and anilox roller the clearness adjustment all the automatic locking structure .

(12) Every unit all adopt oil pumb offer oil ,  it is reclycle and adopt shower type lubricating  oil .

(13)Control system : Adopts lead edge main screen and slotter die cutter two units use computer PLC control ,  operation easy and reliable . it can store 240 orders ,  rub away the plate memory , fastely change plate , the whole machine reture zero , automatic version control and accuate .

@ ,The  Lead edge feeder unit

* , The machine combination and separation  function

(1) This lead edge feeder  it has higher precision , little noise than traditional lead edge feeder .

(2) The drive shaft is attached with a friction clutch to avoid damage to the machine due to misoperation

(3)Air - Pressure type connection locking device .

(4) The main motor have pneumatic protection device .

* , Paperboard feeding system

(1) Three rows shaft type lead edge paperboard feeding , easy to operate , high precision .

(2) 7.5 kw air motor , suction auxiliary feeding paperboard , it is can as paperboard bend condition , to adjust the air volume, ensure the feeding paperboard smoothly , the air volume frequency charger control .

(3)The life and right baffle  through the top screw electric adjustment , easy to operate , very convenient .

(4) The feeding paperboard rollers all adopt high - resistance brand from Taiwan . using long life . The front and back baffle clearance adjustment by hand .

(5)Skip paperboard feeding function . according to your demand to choose this function . make sure the bigger paperboard also can process . The lift paperboard up and down adopts air clylinder to push . it is fastly and save time  .

(6) The host use frequency charger to control , start , runing smoothly , it can save 30% energy .

(7)The die cutter and slotter is link with lead edge unit  with pneumatic device . it can urgency stop , paperboard stop and restore paperboard feeding . The Positive and negative point move , the every unit phase point move . the operation more resonable .

(8) the back paperboard holder electrical adjustment , speed up setup .

(9) Dust device :  Equipped with high quality brush, and equipped with 4 kw dust blower, can remove a large number of board printing surface impurities, improve printing quality.

(10) Rear baffle position is electrically adjusted

 (11) Feed counter, set to display production quantity touch screen display

2 , Machine main Parameter

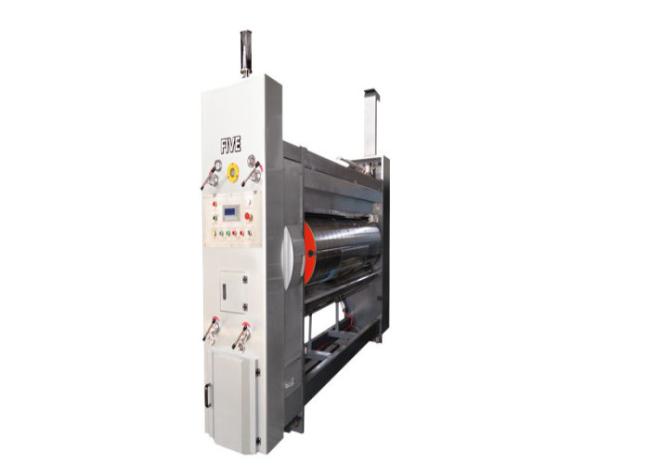

3 , Machine details picture ( The every Unit of Flexo Printer Unit  )

Welcome to contact with me to get every units details information  and machine videos !
