Hydraulic Mill Roll Stand Machine For Paper Roller Corrugated Production Line
Hydraulic Mill Roll Stand Machine For Paper Roller Corrugated Production Line
1 Product Description
Symmetrical structure, can carry two craft paper at one time, which can work without brake.
Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic
pressure. feeding craft / reel paper quickly.
Brake: pneumatic brake
Double Level Auto Expander, Expander head:3/4 inch Double Level.
Specifications of stand:
1,Reel Stand driven by hydraulic
2,Kfat paper range
Width: Max:2200mm Min:1000mm
Diameter:Max:1500mm Min:350mm
Max Weight:2500Kg(One side)
3,Main roller dia:215mm
4,Pneumatic Source Pressure(MPA):0.4---0.8Mpa
5,Power: 380V 50Hz
Specifications of hydraulic system:
1Working Pressure(MPA):16---18Mpa
2Hydraulic Cylinder Range(Lift/Down):110×440mm
3Hydraulic Cylinder Range(Clamp/Loosen):80×800mm
4Hydraulic Station Motor Power:4KW Short Time(S2) Working Type Nominal voltage:380V 50Hz
5 Hydraulic Station Electromagnetic Valve Working Power:220V 50 Hz
2 Machine main date of technology
| Machine type | hydraulic |
| Width Max | 2200 mm |
| With Min | 1000mm |
| Diameter Max | 1500 mm |
| Diameter min | 350 mm |

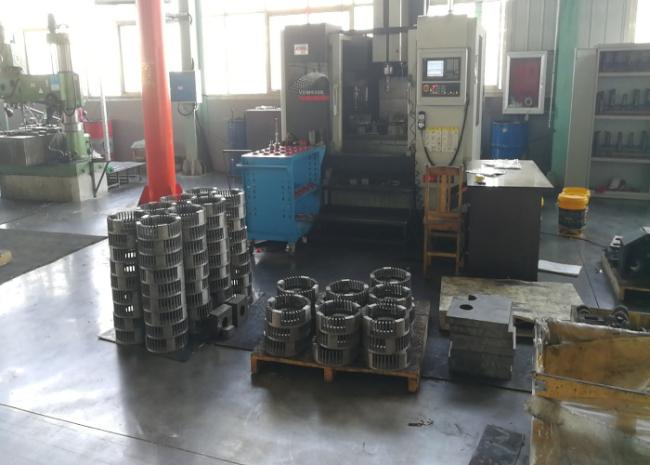

3 Machine main details picture ( Machine workshop )
