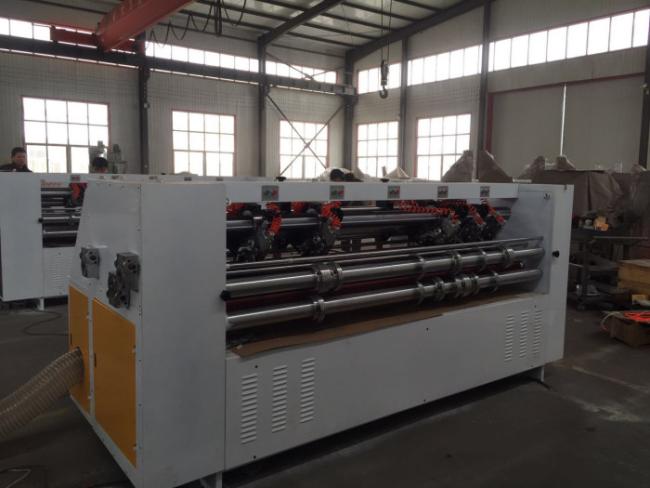

Auto Feed Thin Blade Slitter Scorer For Corrugated Board Cutting
Auto Feed Thin Blade Slitter Scorer For Corrugated Board Cutting
Description:
This machine is to slitting the board and make creasing. It is improved with lead edge feeding system, the original type is manual feeding, this will same time and labor. Standard model is 2000mm, 2200mm, 2500mm, but we can make as your requirement. It is a good machine for box making industry. It can cut the board to the size you want.
Main specification:
| Model | 2000 | 2200 | 2500 |
| Max feeding | 1900mm | 2100mm | 2400mm |
| Min feeding size | 130x450mm | 130x450mm | 130x450mm |
| Speed | 60-120 pcs/min | 60-120 pcs/min | 60-120 pcs/min |
| Power | 3 kw | 3 kw | 4 kw |
| Weight | 1500kg | 1600kg | 1700kg |
Main features:
1. Lead edge vacuum suction feedig system.
2. creasing device: the upper and lower roller use thick steel pipe, grinding, hard chrome plated.
3. Slitting device: the blade is alloy steel, the grinding wheel is diamond material, auto and manual grinding the knife, the blade is sharp.
4. It cut the board well, has long using life.
5. The output roller is rubber, make the paper out stable.
