Corrugated Box Feeder Flexo Printer Slotter Machine / Small Carton Box Making Machine
Automatic Corrugated Box Feeder Flexo Printer Slotter Machine / Small Carton Box Making Machine
1 Machine Main introduction
(1) The Printer roller is diameter 218 mm , through surface grinding and hard chormium platinig .
(2) The high quality steel anilox roller , diameter is 136 mm . It mades from Tengda , Dalian . The anilox roller mesh choose 220 mesh , 250 mesh .
(3) The rubber roller is diameter 86 mm , It mades from Chunfeng Jizhou . The rubber roller is wear - resisting . Using long life .
(4) The pressure of printer roller adopts crosshead shoe , no gapless and slight adjustment .
(5) 360 degree phase adjustment . The machine running or stopping or can adjsut freely .
(6) Automatically distribution ink , the ink bucket recycle distribute the ink . prevent the ink stuff up and the ink leak .
(7) This machine can one time finish slot , cut corner , cut extra paperboard side , press line . it is specialized in making small box .
(8) This machine is easy to operate and repair . reduce the workman , improve the production efficiently .
2 Machine Main Technology Data
| Machine Speed | 120 pcs / min |
| Max feeder size | 1700 X 600 mm |
| Min feeder size | 450 X 170 mm |
| Min Slotting interval | 150 X 50 mm |
| Min Height of box | 70 mm |
| Dimension | 3600 X 2100 X 1700 mm |

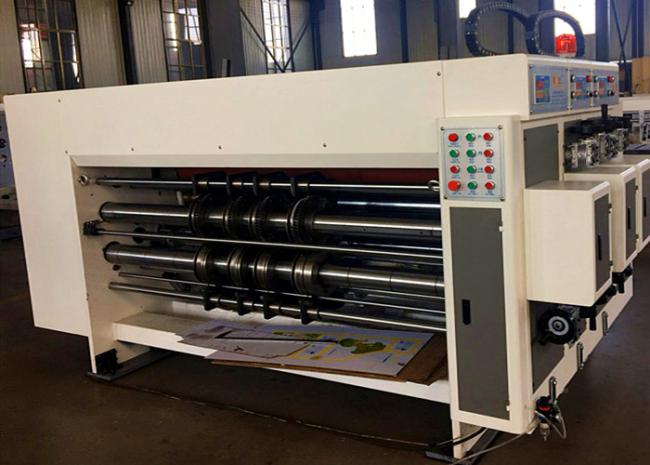

3 Machine Main Details Information
