Low Noise Fully - Automatic Carton Box Packing Machine 200 Pcs / Min Speed
Automatic Carton Box Rotary Slotter Machine / Carton Box Packing Machine
1 Machine Main introduction and Feature
(1) This is our single slotter machine , it can slot the corrugated carton box .
(2) The computer control the corrugated board data .
(3) The machine adopt planetary structure .
(4) The feeding unit is vacuum adsorption type .
(5) The machine gears is alloy gears , double bearings .
(6) in order to protect the worker , the machine have protect cover .
(7) The Machine electrical adjust the height of carton box . electrical adjust the phase .
(8) The slotter unit have ten screw rod . four slotting knives and one triming knive .
(9) (1) PLC touch screen control, including automatic counting ,speed, quantity display ,skip paperboard alarm lamp function .
(10) High quality materials and accessories are selected. All transmission rollers are made of high quality steel, which is balanced by movement and movement and polished by grinding and hard chromium plating.
2 Machine Main Technological data
| Machine design speed | 200 pcs/min |
| Machine efficient speed | 180pcs/min |
| Machine wallboard thickness | 50 mm |
| The width of machine | 3000 mm |
| Max feeder paperboard size | 1158 X 2800 mm |
| Min feeder paperboard size | 380 X 700 mm |
| Min slot interval (L*W*L*W) | 240X60X240X60 mm |
| Min height of box | 235 mm |
| Machine dimension | 4800 X 3000 X 1800 mm |
| Adjust slot knives type | Computer adjustment |

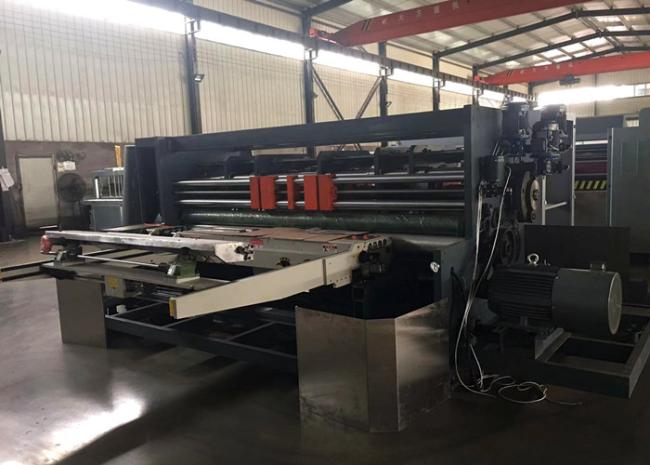

3 Machine Main Picture ( Factory semi - finished production )
