Corrugated Lead Edge Feeder Slotter Machine / Carton Box Manufacturing Plant
Corrugated Carton Box Lead Edge Feeder Flexo Printer Slotter Machine / Carton Box Making Machine
1 Machine main introduction and advantages
(1) Main transmission gear adopts high quality material 40Cr high precision grinding tooth processing, gear precision is high, wear resistance is strong, transmission is stable and reliable .
(2) The transmission bearing is of high quality in Harbin.
(3) The main control electric appliance adopts French Schneider .
(4) Keyless connection ring is used to reduce center wear and maintain high precision of cutting groove .
(5) Use oil pump to lubricate by circulating spray.
(6) Control system: computer PLC control system, easy and accurate operation.
(7) Electric synchronous adjustment left and right movement, Electric synchronous adjustment height carton box
(8) Machine Cover adopt double covers , make the machine solid .
2 Machine Main Data Of Technology
| Machine design speed | 200 pcs/min |
| Machine efficient speed | 180pcs/min |
| Machine wallboard thickness | 50 mm |
| The width of machine | 3000 mm |
| Max feeder paperboard size | 1158 X 2800 mm |
| Min feeder paperboard size | 380 X 700 mm |
| Min slot interval (L*W*L*W) | 240X60X240X60 mm |
| Min height of box | 235 mm |
| Machine dimension | 4800 X 3000 X 1800 mm |
| Adjust slot knives type | Computer adjustment |

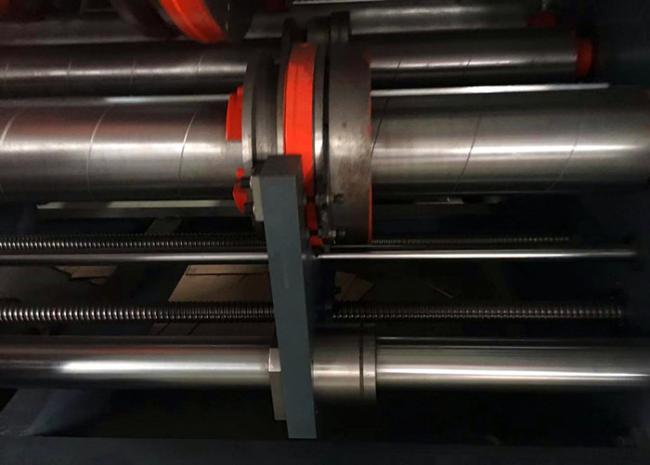

3 Machine main details picture
