Corrugated Box Rotary Slotter Machine Vacuum Adsoption Automatic Feeder
Vacuum Adsoption Automatic Feeder Corrugated Box Rotary Slotter Machine
1 Rotary Slotter Machine Main introduction
(1) Use oil pumb to lubricate by circulating spary .
(2) Control system : computer PLC control system , easy and accurate operate .
(3) Electric synchronous adjustment left and right movement, Electric synchronous adjustment height carton box .
(4) Machine cover adopts double covers , make the machine solid and apperance is more elegent .
(5) All the main electric appliance adopt famous brand , such as siemens , schneider and so on .
(6) This machine speed is 200 pcs / min , more enhance the production .
2 Machine Machine technology parameter
| Machine design speed | 200 pcs/min |
| Machine efficient speed | 180pcs/min |
| Machine wallboard thickness | 50 mm |
| The width of machine | 3000 mm |
| Max feeder paperboard size | 1158 X 2800 mm |
| Min feeder paperboard size | 380 X 700 mm |
| Min slot interval (L*W*L*W) | 240X60X240X60 mm |
| Min height of box | 235 mm |
| Machine dimension | 4800 X 3000 X 1800 mm |
| Adjust slot knives type | Computer adjustment |

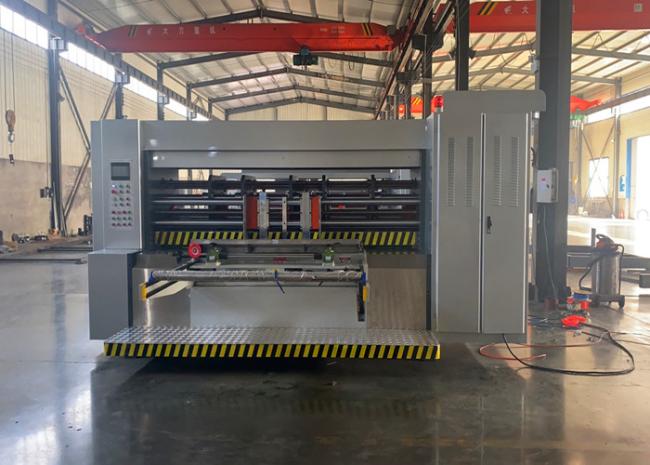

3 Machine Main picture show
If you are interested in this machine , please kindly contact with me to get more information of this machine !!!
