High Performance Automatic Partition Assembly Machines For Corrugated Paperboard

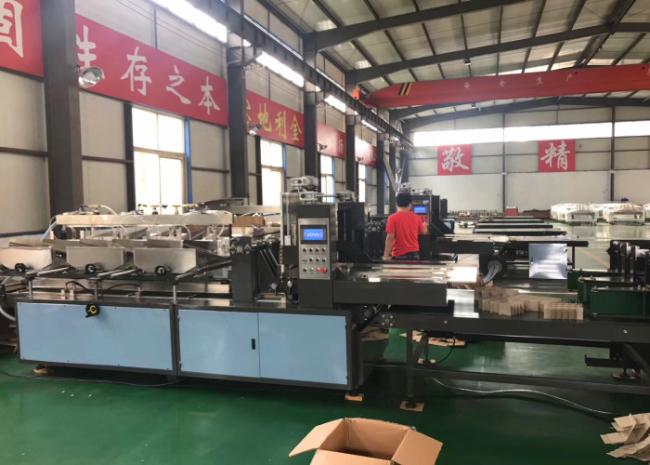

Automatic Partition Assembly Machine For Corrugated Paperboard
1 Partition Assembly Machine Description
(1) Suitable for the auto insertion of all kinds of carton clapboard.
(2)Vertical direct using vacuum adsorption feeding , landscape orientation using servo feeding , quick and accurate .
(3) Longitudinal and transverse to cross the two pieces of paper at the same time.
(4) Longitudinal feeding shaft adopts electric lifting .
(5)Landscape orientation feeding worktable lifting adopts electric adjustment .
(6)Electric adjust the clapboard height in landscape orientation .
(7)Output in double work positions, high efficiency and energy saving.
(8)Touch screen input control, electric to adjust the clapboard parameters .
(9)Comprehensive using of pneumatic and electric control, to ensure the advancement of machine control .
(10) Using compressed air storage tanks for gas centralized supply, gas supply pressure stability, enough gas source.
(11)The gas devices get the gas from the primary tracheal , independent control, no influence between each other .
(12) Equipped with fault detection device, auto stop the machine when paper blocking .
2 partition assembly machine parameter
| power | 10kw | Not include air compressor |
| Host belt speed | 15-30m/min | |
| Clapboard combining form | 3*(1~n) | In double working station |
| Longitudinal clapboard feeding track No. | 6 | |
| Horizontal clapboard feeding track No. | 1~12 | |
| Clapboard size | Length L=120~500mm | Clapboard thickness 1.5~7mm |
| Height H=70~300mm | ||
| Width W=120~500mm(double station) | Width W=120~900(single station) | |
| Lattice space C=50~150mm | ||
| Lattice space D=30~150mm | ||
| Working speed | 40-60groups/min | Working speed is connected with clapboard size and clapboard combining form |
| Machine weight | 3000kg | |
| Overall dimension | 5500x2200x2000mm | |
|
Note: when width of clapboard is greater than 450mm, the machine just can work in single station. Air compressor or air compressor station requirement: 6kgf/cm². For the special type of clapboard, we can customize the machine as client’s wish. |
||
