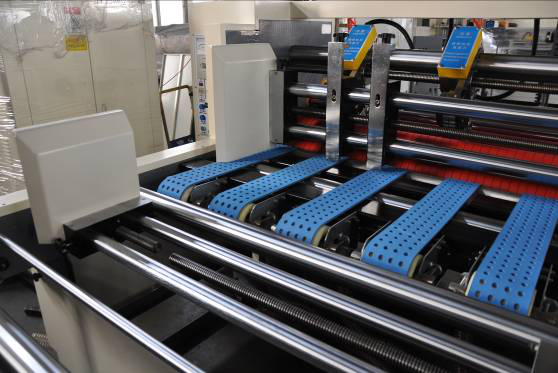

Electric Adjustable Thin Blade Machine Type 2500 8 Shaft Automatic Feeding

New type 2500 8 shaft automatic feeding electric adjustable thin blade machine

Main application features: automatic feed department: cardboard size adjustment adopts screw adjusting mechanism, one operator, simple quickly.
Easy adjustable size paper structure, better adapt to all kinds of cardboard length, and paper stability accurately.


The main technical parameters:

1 Machine maximum slitting board width: 2300mm

2 Maximum mechanical speed: 120m/min

3 Number of paper cutters: (can be increased or decreased according to user requirements) 5

4 Number of crimping wheels: (can be increased or decreased according to user requirements) 8 pairs

5 Minimum slit width: 140mm

6 Minimum line width: 55mm

7 thin paper blade outer diameter: 200mm

8 Thin paper blade thickness: 1.3mm (alloy)

9 Main motor power: 5.5kw speed regulation

Fan power: 3.4KW

10 Pneumatic pressure: <0.4mpa

11 Machine Dimensions: 3200×2100×1500mm

12 Machine weight: 2500kg

13 Minimum paper feed: (two rubber wheelbase) 320mm
