Automatic Carton Box Printer Slotter Machine / Corrugated Carton Making Machine

Automatic Carton Box Flexo Printer Slotter Machine / Corrugated Carton Making Machine

1 Machine main features

1) Four rows wheels type lead edge feeding system , easy operation , high precision.

2) The lead edge wheels adopt Maxdura brand from Taiwan , durable Wear Resistant . the clearance of front baffles is adjusted manually .

3) 7.5kw fan , air suction auxiliary paper feeding, according to the bending degree of the board, adjustable air volume to ensure smooth paper feeding. Variable frequency control the air volume .

4) The positions of the left and right baffles are electrically regulated by the screw rod, which is convenient and quick to adjust.

5) With the skip feeding function , choose the skip feeding function according to the needs to ensure the processing of large size board. Paper lifting and paper dropping adopt cylinder to push the action quickly and save effort.

6) The host machine adopts frequency conversion control the machine start , runs smoothly, and can save 30% of energy.

7) Equipped the interlock control switch which is connected with die cutting unit, to realize urgent stop, stop feeding or resume feeding, forward and reverse jog, phase jog of each unit, and more humanized operation.

8) The back paper frame can electric control the position movement , speed up the adjustment .

9) Dust removal device : equipped with high quality brush , it can remove impurities on the printing surface of cardboard in large quantities and improve the printing quality.

10) Manually adjust the back baffle position .

11) Paper feeding counter, set and display production quantity.

2 Machine main parameter

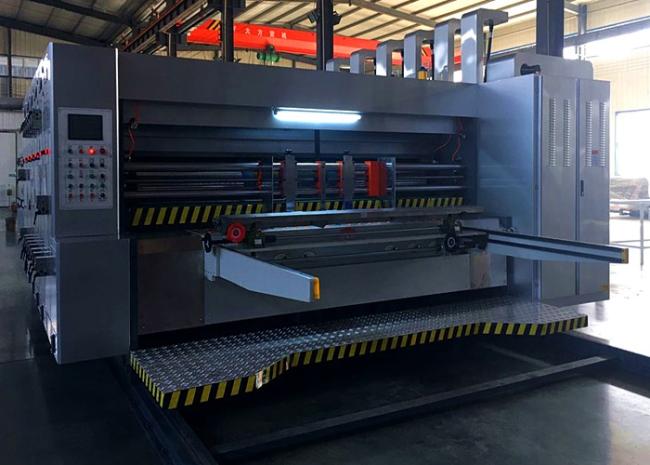

3 Machine main pictures
