Automatic Feeder Corrugated 3 Colors Flexo Printer Slotter Machine Die Cutter Carton Box
Automatic Feeder Corrugated 3 Colors Flexo Printer Slotter Die Cutter Carton Box Machine
1 Machine main features
(1) Double creasing wheel and pre-creasing slotting unit,electric adjustment slotting depth and 360°phase.Slotting knife plate,creasing wheel and pre-creasing wheel left and right movement is screw shaft electric inching movement adjust and equipped with a scale reading device.The slotted phase adjustment mechanism is a planetary gear structure. The minimum 200mm of the paper base of the driving shaft of the whole machine can achieve the minimum 210mm cardboard pass.
(2).Remarks Optional:Die cutting unit optional with slotting knives attachment.
2 Machine main base parameter
| Machine speed | 200 pcs /min |
| max feeding size | 2200 mm |
| Min feeding size | 600 X 210 mm |
| Min slotting space | 230 X 60 mm |
| machine wallboard thickness | 50mm |

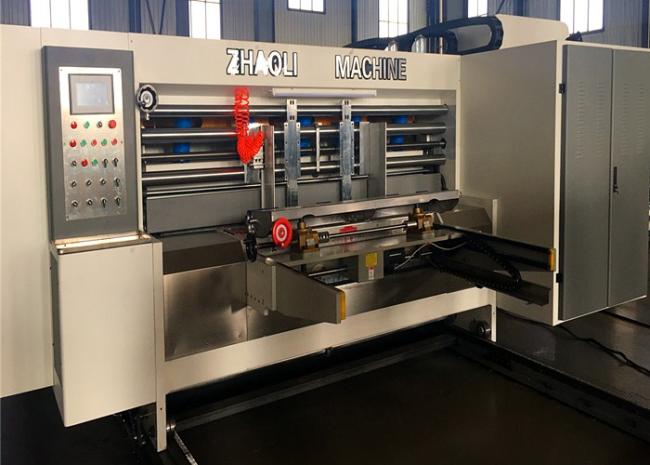

3 Machine pictures show
If you are interested in this machine , feel free to contact with me !!!
