All in one digital Poster Mini COB P0.625/ P0.9/ P1.25/ P1.56/ P1.875mm

Price Negotiable
Price: Negotiable
MOQ: 10sqm
Delivery Time: 25 days
Brand: TBC LED
Product Description

  Quick detail Of Flip-chip COB P1.56mm Indoor LED Poster Display

1. Pixel Pitch: 1.56mm
2.
Flip-chip COB LED, high contrast10,000:1 and high refresh rate3,840 Hz, the surface is delicate and smooth

3. Greyscale: 16 bit (intemal processing 22bit), the color highlights, soft, and NOT hurt the eyes
4. Cabinet size: 600*337.5mm

5. Recommended Viewing Distance: 1.5-3m.

6. Cabinet Material: Aluminum Cabinet, 25kg Light Weight, thickness:40mm

7. Brightness (Max.): 600nits

8. Quality Certificate: CE, RoHS,FCC, ETL

9. Quick Installation: Yes, fast side lock for quick assembly and disassembly

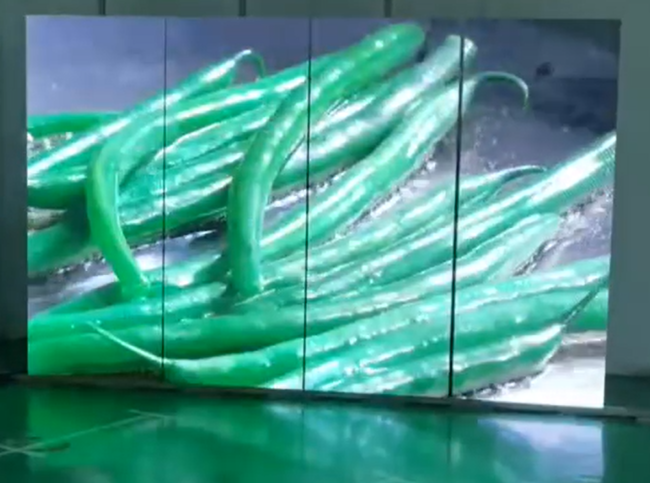

10. Multiple LED poster can be put toger to form to form a large screen with no gaps. They can play continuous pictures or different pictures individually.(A poster screen consists of 5 cabinets: H1687.5mm;A poster screen consists of 6 cabinets: H2025mm)

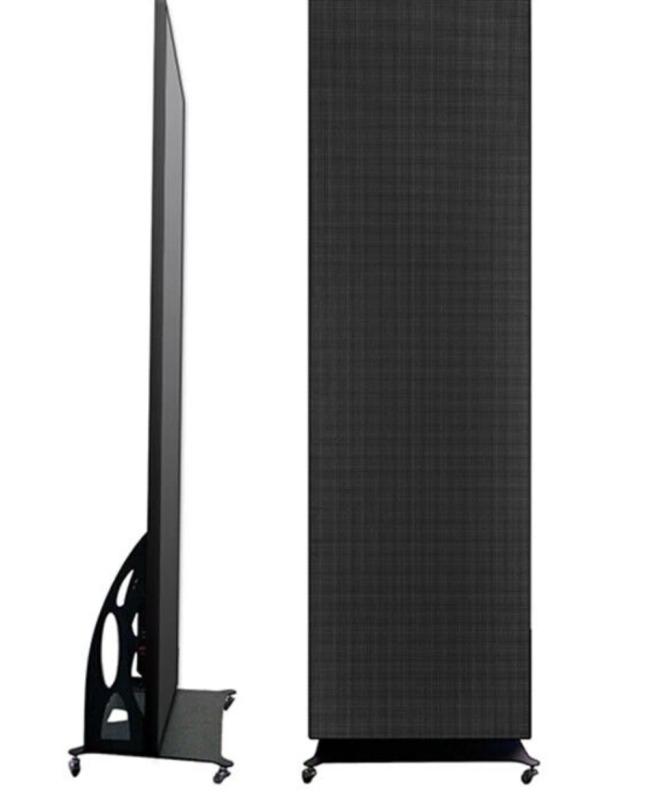

11. ​​Led poster screen is a new type of LED display tools, mainly used in commercial advertising, information release, new product promotion.Portable wheel, with movable gear, you can move at will.





12. High brightness; High Definition; Low energy consumption; Long life. It can display wonderful advertising content indoor and outdoor.

13. It is plug and play,doesn't require installation. The overall is thin and stylish with light weight. Front maintenance is available.

14. Through the network connection, it can achieve remote control and management LED poster screen, easy to update and change the content.



15. Come and customize your store's poster screen. Tell your brand story. Usually, some text is required to communicate the message, or at least to illustrate the company's mission and brand image.





Specification Of P1.56mm Indoor LED Poster Display



Pixel Pitch (mm) P1.56
Screen Size (mm) 600*1687.5
Configuration (WxH, perscreen) 384*1080 pixels
No. of Cabinets (WxH, perscreen) 5
Weight (per screen) 25kg
LED Type Flip-chip COB LED
Brightness (Max.) 600nits
Contrast Ratio 10,000:1
Viewing Angle - Horizontal/Vertical 170°/ 155°
Bit Depth 16 bit (intemal processing 22bit)
Color Temperature - Adjustable 2,800K~10,000K
Input Power Range 100~240VAC,50/60Hz
Power distribution (Max.) 320(W/Screen)
Power distribution (Avg.) 100(W/Screen)
Resolution 3840Hz
Working Temperature /Humidity 0°C-+40°C/10%-80%RH
Storage Temperature /Humidity -20°C~+45°C/5%-95%RH
LED Lifetime 100,000hours
Controller Built-in
Maintenance Method front service
Interface Multiple expansion ports, such as USB port, HDMI, audio, etc.




Our Services



1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request
