Ip65 Waterproof Led Advertising Display Billboard P8 Outdoor Smd 160 Degree
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15days
Brand:
TBC
Product Description
Waterproof IP65 Led Advertising Billboard P8mm SMD Design
Application:
Outdoor E Series Waterproof IP65 Led Advertising Billboard are the most popular outdoor led display product in the market, its SMD design provides much wider viewing angle and color performance, plus high brightness offers great visibility to the target audience.
Features and Advantages:
Brand New SMD Design
- Close viewing distance
- Wide viewing angle
- Front or rear serviceable
Strong Cabinet Design
- IP65 for extreme weather protection
- Cold rolled steel with extra powder coating for anti-rust
- Smart side handle design for easy installation
High Visibility
- Brighter even when in sunny days
- Vivid color
- High definition
Parameters
| Brightness | nits | 6000 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 140(+70/-70) | ||
| Viewing angle - Vertical | deg. | 140(+70/-70) | ||
| Cabinet weight | kg | 46 | ||
| Cabinet width | mm | 960 | ||
| Cabinet height | mm | 960 | ||
| Cabinet depth | mm | 140 | ||
| Cabinet area | sq. m. | 0.92 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 1:1 | |||
| Ingress protection (Front/Rear) | IP | IP65/IP43 | ||
| Operating temperature range | deg. C | - 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 8. | ||
| Pixel matrix per cabinet | 120x120 | |||
| Pixels per cabinet | 14400 | |||
| Lines per meter | 125 | |||
| Pixels per sq. meter | 15625 | |||
| LEDs per sq. meter | 15625 | |||
| Recommended minimum viewing distance | m | 8 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 850/290 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||

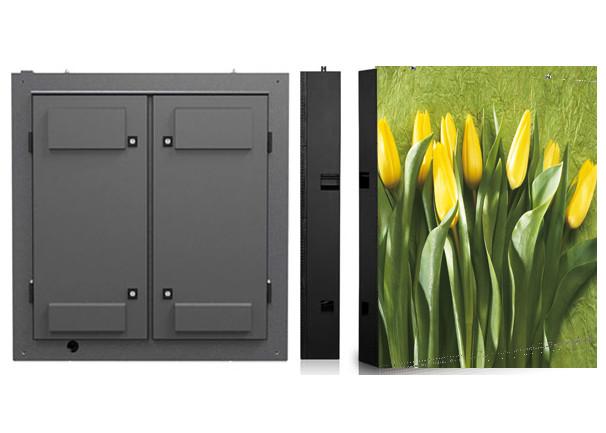

Pictures:
