Unravel the Wonders of Giant Series 500x500mm Rental LED Screen 3840Hz Removable Power Box
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15 working days
Brand:
TBC LED
Product Description
Rental led sign Description:
Rental led sign Description:

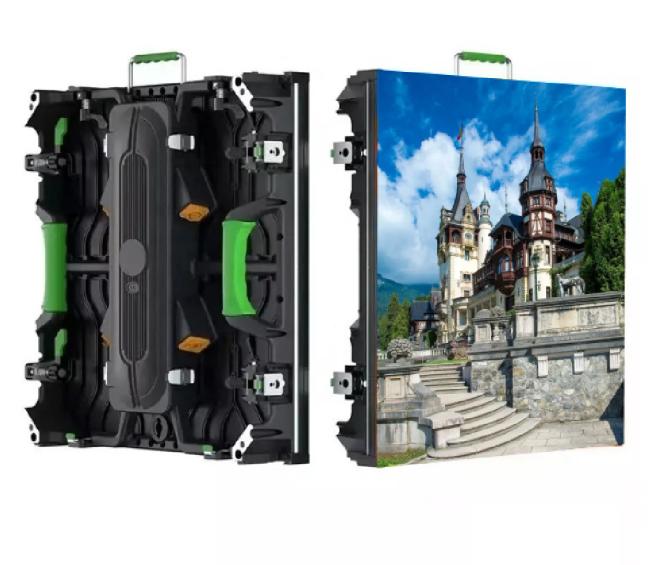

The lightweight and slim die cast aluminum cabinet, weighing 7.5kg/cabinet and 80mm thick, is a joy to handle. It's effortless to transport, making it suitable for both small and large events. Assembly is a snap, saving you valuable time and labor.
Rental led sign Description:
The seamless 90 Degree Angle Installation is a key feature. The corner cabinet's 45 degree edge allows for a seamless 90 degree corner, creating a visually pleasing and professional look. This is especially important for installations where precision and aesthetics are paramount.
Rental led sign Description:
The Removable Power Box, with its innovative pin connection design, is not only easy to service but also plays a significant role in enhancing image quality. By minimizing electrical disturbances, it enables crisp and vivid visuals, bringing your content to life.
Rental led sign Description:
The concave and convex installation options offer a world of possibilities. The ability to curve the screen at 2.5° intervals between -10° and 10° allows for the creation of captivating convex and concave formations. This can add a wow factor to any event space.
Rental led sign Description:
The front & rear maintenance feature is a lifesaver. The magnetic LED panels can be removed from the front in a flash. This dual maintenance design ensures that you can quickly address any glitches during an event, without disrupting the flow.
Rental led sign Description:

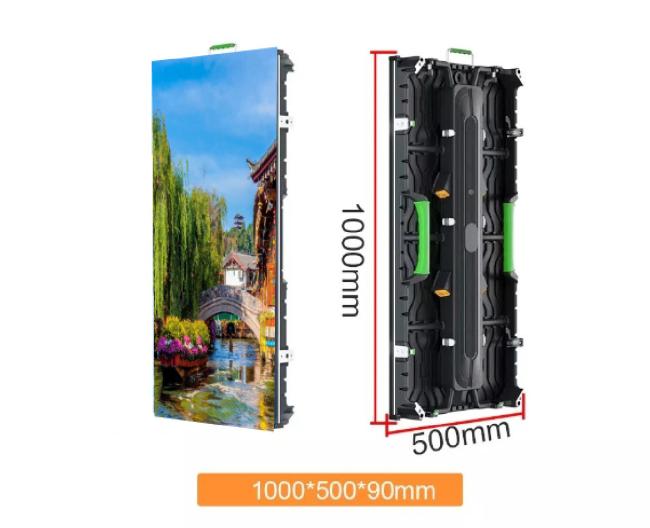

The mix use of 500x500mm and 500x1000mm cabinets gives you the creative freedom to assemble the display to your exact specifications. You can tailor it to fit any event layout, making it a truly flexible solution.
Rental led sign Specification:
| Giant 2.9mm | Giant 3.91mm | Giant 4.81mm | |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) |
500 x 500 x 80 500 x 1000 x 80 |
500 x 500 x 80 500 x 1000 x 80 |
500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
