500x500mm P2.9 Giant Series Outdoor LED Stage Rental Display with Front and Rear Maintenance
500x500mm P2.9 Giant Series Outdoor LED Stage Rental Display with Front and Rear Maintenance

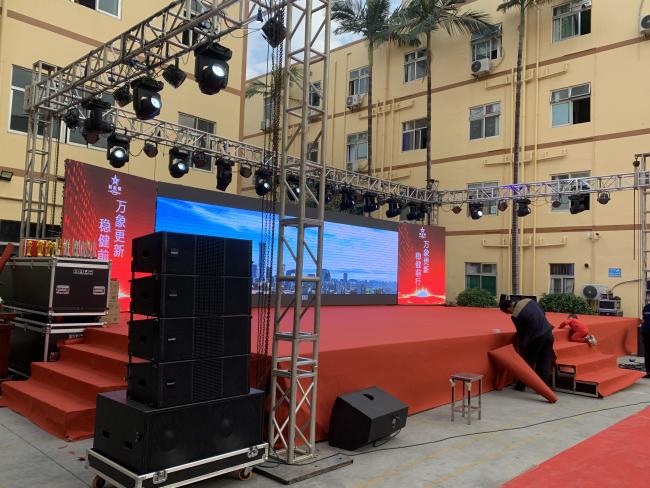

TBC LED Giant series LED display panel can be used for both indoor and outdoor, front access and rear access are all supported. lt mainly used for stage LED display, concert LED display, event LED screen, church backdrop LED screen etc.
| Giant 2.9mm | |
| Pixel Pitch | 2.976mm |
| Pixel Configuration | SMD1415 |
| Pixel Density | 86,016 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 |
| Panel Dimensions (mm) |
500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution | 168 x 168 |
| Panel Material | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg |
| Digital Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm |
| Max Power Consumption | 650 W /Sqm |
| Brightness | >5,000 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front |
| IP Rating (Front/Rear) | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |

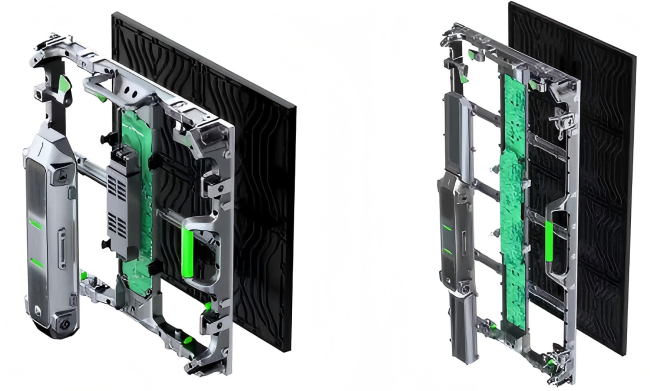

1. Front &Rear Service;
2. Detachable Back Cover
Adopts Optimized Control Box with Quick removable without any tools optional. the back box (includes power sully and con- trol cards)is removable quickly for replacement and maintain.
3. Support Right Angle Installation
Supports 90° right angle LED display installation to meet some special buildings and applications.
