Glory P2.9 Outdoor Rental LED Display 500×1000mm Die-Cast Aluminum Cabinet IP65 Weatherproof
Glory P2.9 Outdoor Rental LED Display 500×1000mm Die-Cast Aluminum Cabinet IP65 Weatherproof
1. Glory Series P2.9 Outdoor Rental Screen Parameters:
|
Pixel Pitch |
2.9mm |
|
Pixel Configuration |
SMD1515 |
|
Pixel Density |
118,336 pixels/m2 |
|
Module Dimensions(W x H) (mm) |
250 x 250 |
|
Panel Dimensions (mm) |
500 x 1000 x 80 |
|
Modules Per Cabinet (W x H) |
2 x 4 |
|
Module Resolution |
86 x 86 |
|
Cabinet Resolution |
172x 344 |
|
Panel Material |
Die Cast Aluminum |
|
Weight per Cabinet |
11kg |
|
Digital Processing |
16bit |
|
Colours |
281 trillion |
|
Contrast Ratio |
5,000 : 1 |
|
Average Power Consumption |
200 W /Sqm |
|
Max Power Consumption |
650 W /Sqm |
|
Brightness |
>4,500 nits |
|
Refresh Rate |
>3,840 Hz |
|
Vertical Viewing Angle |
160° |
|
Horizontal Viewing Angle |
140° |
| Scan Method | 1/32 Scan |
|
Expected Lifetime |
100,000 Hrs |
|
Servicing |
Rear |
|
IP Rating (Front/Rear) |
IP 65 |
|
Operating Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
|
Storage Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
| Warranty | 2 year |

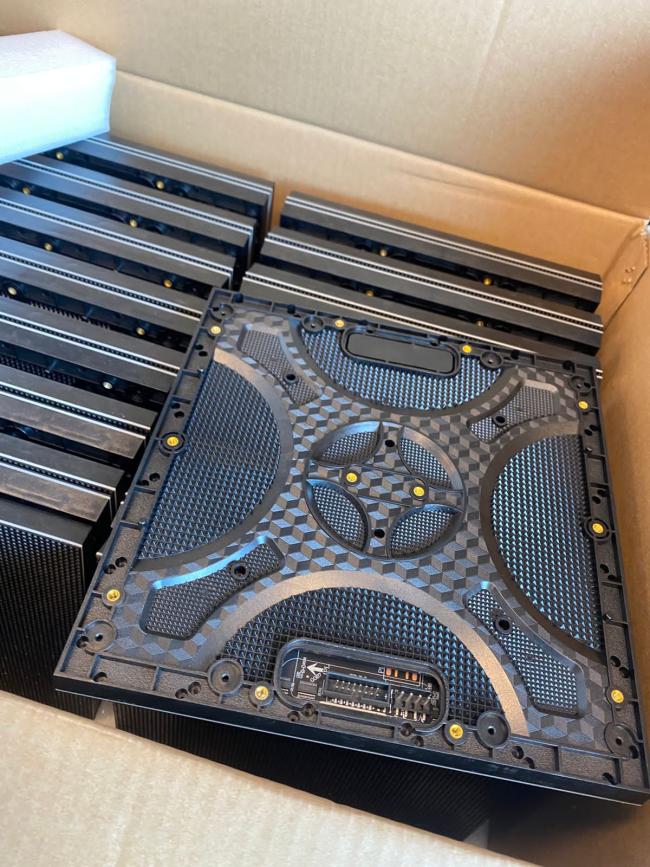

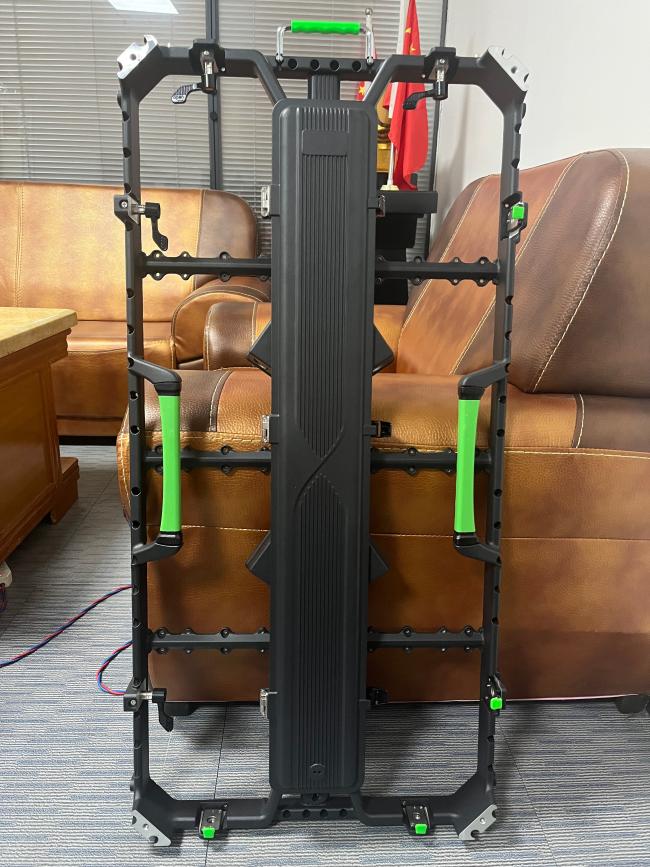

2. Glory P2.9 Outdoor Rental LED Display - 500×1000mm Die-Cast Aluminum Cabinets (IP65)
3. Glory Series Outdoor Rental LED Display features:
① IP65 Full Weatherproofing;
② Die-Cast Aluminum Cabinets 500×1000mm only weights 11kg;
③ High Brightness (≥4500nits)；
④ It can make curved LED display, inner and outer arc are both available, it can better suit for different application requirement.

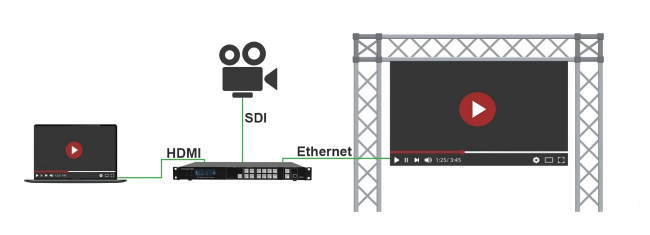

4. How LED video wall production works:

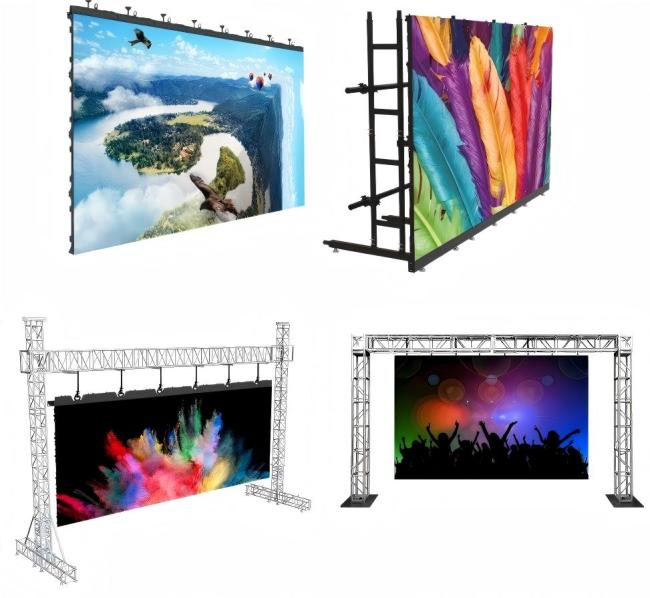

5. Rental LED Display Installation Methods:
① Hanging
② Truss Mounting
③ Stacking (Ground Support)
6. Our Services
① 10 Years professional led display manufacturer;
② Short delivery time: 5-21 working days, adjustable according to customer request;
③ Wholesale price;
④ OEM and ODM service;
⑤ Customizable product upon request.
