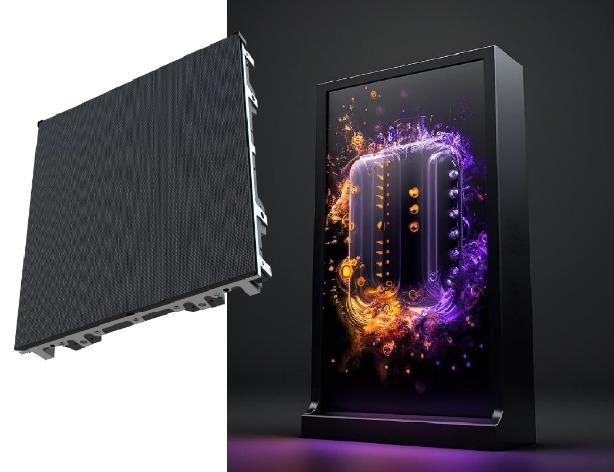

P1.5mm Small Pitch Outdoor LED Billboard Ideal High-resolution Outdoor Advertising Enhancing Visibility Effectively
P1.5mm Small Pitch Outdoor LED Billboard Ideal High-resolution Outdoor Advertising Enhancing Visibility Effectively
Specifications of Small Pitch Outdoor LED Billboard
| Pixel Pitch (mm) | P1.25 | P1.5 | P1.875 |
| Pixel Density (dot/m2) | 640,000 | 444,444 | 284,444 |
| Module Size (mm * mm) | 240*270 | 240*270 | 240*270 |
| Panel Size (mm * mm) | 480*540 | 480*540 | 480*540 |
| Panel Resolution (PX* PX) | 384*432 | 320*360 | 256*288 |
| Panel weight | 9kg | 9kg | 9kg |
| Brightness (cd/m2) | ≥4000 | ≥4000 | ≥4000 |
| Grey Scale(bit) | ≥14 | ≥14 | ≥14 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Maximum Cabinet Power Consumption (W) | 720 | 720 | 720 |
| Average Cabinet Power Consumption (W) | 240 | 240 | 240 |
| Viewing Angle (Deg) | HV:160° | ||
| Working Voltage (V) | 110V,200V,60Hz | ||
| Working Temperature (℃) | -20~ +50 | ||
| Working humidity(RH) | 10%~90% | ||
| Waterproof Level | IP65 | ||
| Working life | 10,0000H | ||
| Working Environment | Outdoor Fixed Installation | ||
Features of Small Pitch Outdoor LED Billboard
1. Lighter and thinner
Adopts a thinner and lighter design and supports full front maintenance and installation
2. X-GOB TECHNOLOGY
We use X-GOB to coat the module surface,which can e fectively resist the impact of outdoor environments,while also improving the screen's resistance to shattering,waterproofing,shock resistance,UV resistance,dustproofing,eye protection,and antistatic properties.This not only greatly extends the screen's lifespan,but also makes the screen more durable and adaptable to various environmental conditions.
3. S-latch for quick front-access
The safety lock requires a special suction cup to remove the screen module to prevent the module from falling off due to vibration or rough handling
4.High brightness
Even in bright outdoor environments,our high brightness screen ensures clear visibility,allowing you to enjoy an uninterrupted visual feast outdoors.It is especially suitable for outdoor commercial displays.
1.Sports venue
Outdoor small-pitch LED display screens can be applied in sports venues to show real-time game information, sponsor advertisements, audience interactions and other content, enhancing the viewing experience and increasing the event atmosphere.
2.Traffic guidance
At transportation hubs, stations, airports and other places, Small Pitch Outdoor LED Billboard can be used to show traffic information, guide routes, etc., and improve traffic efficiency.
3.Urban landscape
Small Pitch Outdoor LED Billboard can be used in urban landscape projects to create urban night scenes and enhance the modernity and technological feel of the city.
