GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising
Outdoor P1.25 LED Display 480×540mm GOB Cabinet Waterproof High-Density for Outdoor Advertising
Outdoor P1.25 Small Pixel Pitch LED Display Specifications:
| Pixel Pitch (mm) | P1.25 |
| Pixel Density (dot/m2) | 640,000 |
| Module Size (mm * mm) | 240*270 |
| Panel Size (mm * mm) | 480*540 |
| Panel Thickness(mm) | 63 |
| Panel Resolution (PX* PX) | 384*432 |
| Panel Weight | 9kg |
| Brightness (cd/m2) | ≥4000 |
| Grey Scale(bit) | ≥14 |
| Refresh Rate (Hz) | 3840 |
| Maximum Cabinet Power Consumption (W) | 720 |
| Average Cabinet Power Consumption (W) | 240 |
| Viewing Angle (Deg) | H/V160° |
| Working Voltage (V) | 110V,200V,60Hz |
| Working Temperature (℃) | -20~ +50 |
| Working Humidity(RH) | 10%~90% |
| Waterproof Level | IP65 |
| Working Environment | Outdoor Fixed Installation |
|
Lifespan |
10,0000H |
| Warranty | 2 years |
Features of Outdoor P1.25 Small Pixel Pitch LED Display:

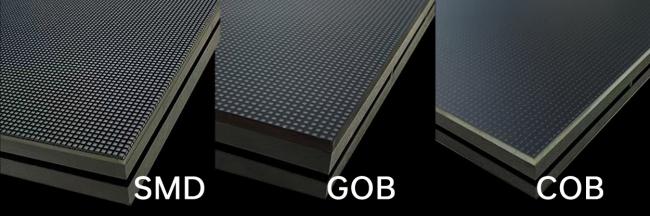

1. X-GOB Technology

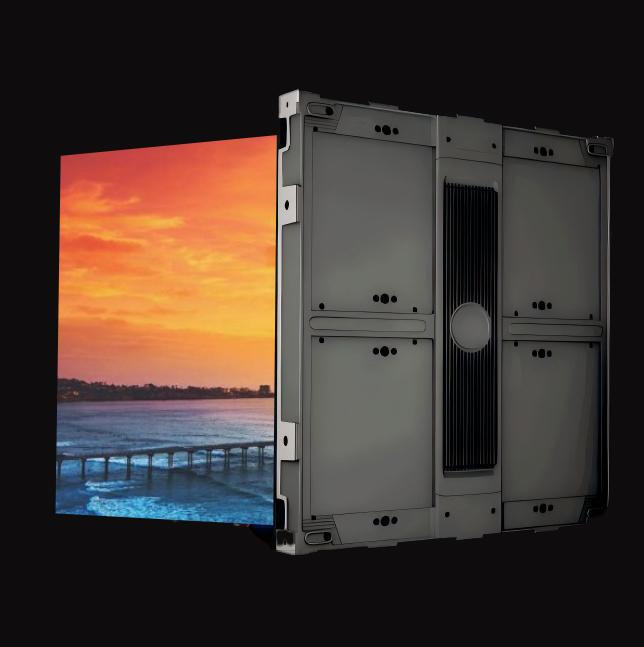

2. Heat Dissipation
By maximizing the air contact surface area, we achieve efficient heat dissipation, which significantly extends the lifespan.

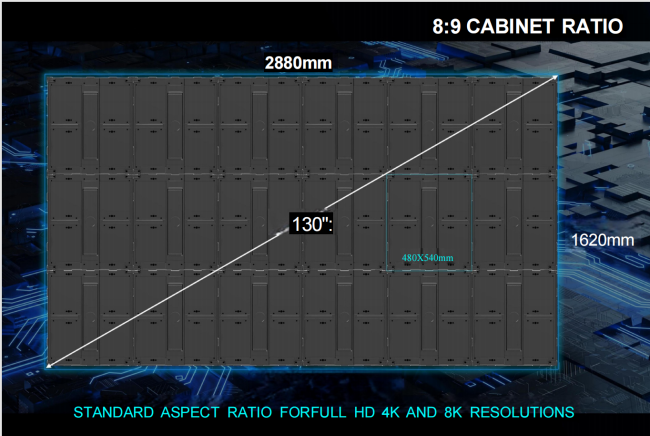

3. 8:9 Aspect Ratio LED Cabinet (480×540mm)
The cabinet's 8:9 aspect ratio (480×540mm) allows for seamless splicing into standard 16:9 configurations, as two cabinets can be horizontally combined to form the industry-preferred widescreen ratio. This design streamlines the splicing process by directly matching 16:9 without requiring aspect ratio conversion, which eliminates potential image distortion and reduces installation complexity.
1. Premium Commercial Advertising
-
Ultra-HD visuals for luxury brands & landmarks
-
Seamless large-format displays
2. Sports Venue Live Broadcasts
-
4000nits brightness for sunlight readability
-
3840Hz refresh rate eliminates motion blur

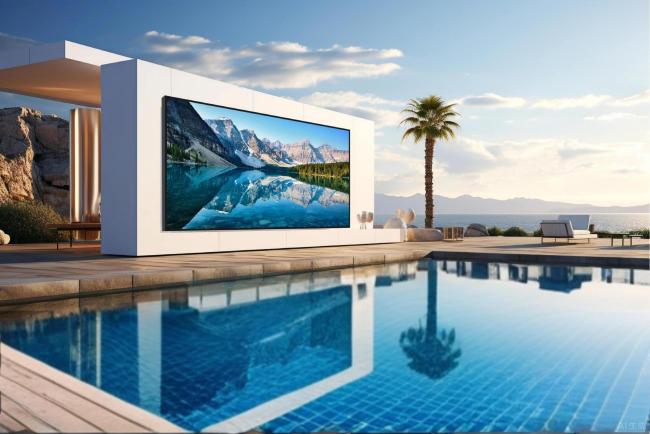

3. High-End Outdoor Home Theaters
-
Cinematic HDR experience in open spaces
-
Weatherproof GOB protection for all-season use
