COB P1.538 Die-Casting Aluminum Cabinet FHD LED Display for Indoor with High Contrast Ratio and 3840Hz Refresh Rate
Indoor COB P1.538 LED Display Specifications:
| Pixel Pitch | P1.25 | P1.53mm | P1.86mm |
| Pixel Density | 640,000 px/㎡ | 422,753 px/㎡ | 288,906 px/㎡ |
| LED Chip | Flip Chip | ||
| Module Size (W*H) | 320*160mm | ||
| Module Resolution | 256*128 dots | 208*104 dots | 172*86 dots |
| Surface Treatment | Matt COB | ||
| Surface Hardness | 4H | ||
| Panel Size (W*H*D) | 640mm*480mm*59mm | ||
| Panel Weight | 7.5 kg / panel | ||
| Panel Resolution (dots) |
512*384 | 416*312 | 344*258 |
| Material | Die-casting Aluminium | ||
| Circuit Design | Common Anode Circuit | ||
| Flash Correction Storage | Applicable | ||
| Brightness | Standard 600nits | ||
| Refresh Rate | 3840Hz | ||
| Contrast Ratio | 10000:1 (Condition without lighting) | ||
| Color Temperature | 9300K (Standard) | ||
| Viewing Angle | H160°, V160° | ||
| Input Voltage | AC 100~240V 50/60Hz | ||
| Max. Power Consumption (White Balance 600nits) |
135 w/panel | 88 w/panel | 88 w/panel |
| Maintenance Way | Front Service | ||
| IP level of PCB serface | IP54 (Washable by clean water) | ||
| Lifetime at 50% Brightness | 100,000 hours | ||
| Operating Temperature / Humidity | -10°C-+40°C/10%RH-90%RH | ||
| Stroage Temperature / Humidity | -20°C-+60°C/10%RH-90%RH | ||
| Certificate | CCC, EMC CLASS-A, ROHS, CQC | ||
| Application | Indoor | ||
| Warranty | 3 years | ||
Key Features of Indoor COB P1.538 320×160mm Module:
1. Pixel pitch: 1.538mm
2. Module size: 320×160mm
3. Module Resolution: 208*104dots
4. Panel size: 640×480×59mm(Customized)
5. Panel Resolution: 416*312
6. Panel weight: 7.5kg/panel
7. Surface Treatment: COB
8. Surface Hardness: 4H
9. Application: Indoor
10. IP : 54
11. Refresh Rate: 3840Hz
12. Brightness: 600nit
13. Certificate: CCC, EMC CLASS-A, ROHS, CQC
14. Warranty: 3 years

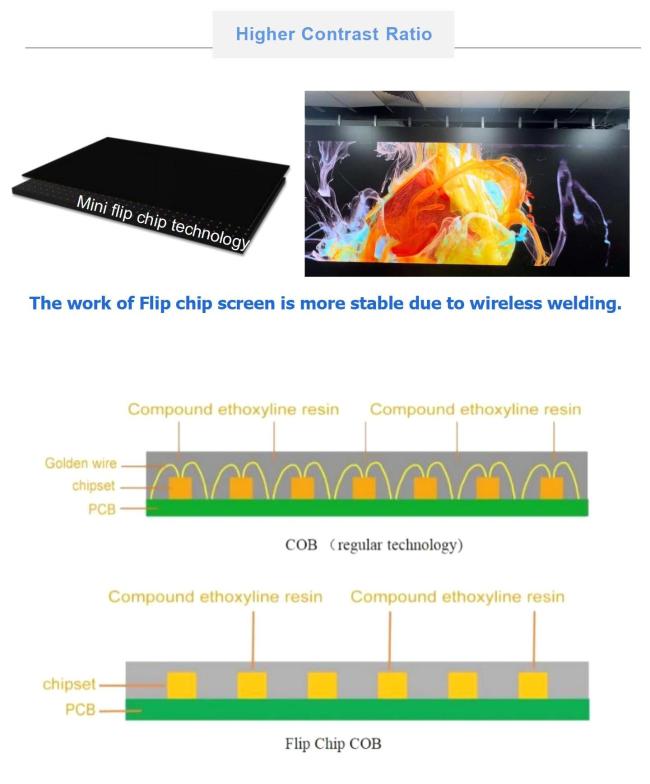

1. High contrast ratio
It delivers deep black levels, intense visual impact, and immaculate detail for diverse applications.
2. 16-18bit Color Depth
LED chip's precise wavelength ensures perfect color uniformity. Combined with Gamut Transfer tech, it delivers true-to-source color accuracy - critical for color-sensitive applications.
3. Wide 175° Viewing Angle
Maintains perfect color and clarity even at extreme side angles.
4. Wireless LED Control
Eliminates cable clutter while delivering secure, scalable content transmission - outperforming traditional flat cables in setup flexibility and maintenance.
5. Superior Visual Performance
COB LED module is a surface light source, but SMD LED module is a point light source. Therefore, the visual perception of COB LED display is better, no particles, more suitable for close viewing.
