Outdoor LED Billboard GOB P1.25 Small Pixel Pitch High Protection and Improved Durability for Harsh Environments
Outdoor LED Billboard GOB P1.25 Small Pixel Pitch High Protection and Improved Durability for Harsh Environments
Outdoor P1.25 Small Pixel Pitch LED Display Specifications:
| Pixel Pitch (mm) | P1.25 |
| Pixel Density (dot/m2) | 640,000 |
| Module Size (mm * mm) | 240*270 |
| Panel Size (mm * mm) | 480*540 |
| Panel Thickness(mm) | 63 |
| Panel Resolution (PX* PX) | 384*432 |
| Panel Weight | 9kg |
| Brightness (cd/m㎡) | 4000 |
| Grey Scale(bit) | 14 |
| Refresh Rate (Hz) | 3840 |
| Maximum Cabinet Power Consumption (W) | 720 |
| Average Cabinet Power Consumption (W) | 240 |
| Viewing Angle (Deg) | H/V160° |
| Working Voltage (V) | 110V,200V,60Hz |
| Working Temperature (℃) | -20~ +50 |
| Working Humidity(RH) | 10%~90% |
| Waterproof Level | IP65 |
| Working Environment | Outdoor Fixed Installation |
|
Lifespan |
10,0000H |
| Warranty | 2 years |
GOB LED Display: Key Technological Advantages
1. GOB Technology:
GOB LED modules resist water, moisture, dust, impact, corrosion, blue light, salt spray, and static electricity—making them ideal for outdoor and harsh environments where traditional LED modules struggle.
2. High Refresh Rate, High Contrast Ratio
The VQ series, with a high refresh rate of 3840 Hz and a high contrast ratio of 8000:1, offers several advantages. A high refresh rate ensures smoother motion and reduces motion blur; a high contrast ratio enhances the difference between the screen’s darkest and brightest areas, and improves detail and depth.
3. Energy Saving, Environmental Protection, and Efficient Heat Dissipation
The flip chip process delivers more stable display performance, better energy efficiency, and the cabinet design increases air contact for efficient heat dissipation.
4. Strong Environmental Adaptability
- Automatically adjusts brightness based on ambient light, ensuring clear visibility of ads even in direct sunlight.
- IP65-rated for stable operation in harsh outdoor environments.
- Withstands extreme cold and heat, meeting outdoor advertising needs across regions and seasons.
5. Low Bright & High Gray
The VQ Series boasts 14-bit grayscale performance. A higher grayscale level delivers greater image depth, higher brightness, and more detailed visuals with minimal information loss.

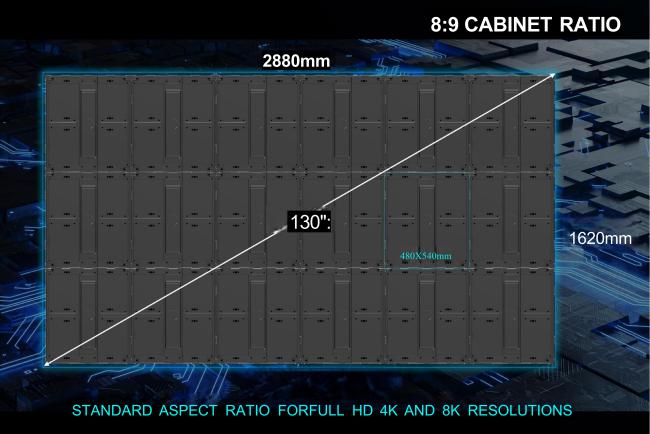

6. Seamless Splicing Technology
The modular design features 240mm×270mm modules, supporting seamless splicing to enable ultra-large, arbitrarily spliced displays—such as 64-inch and 130-inch screens.
Quick Details for the Outdoor P1.25 Small Pixel Pitch LED Display:
1. Pixel pitch options: P1.25

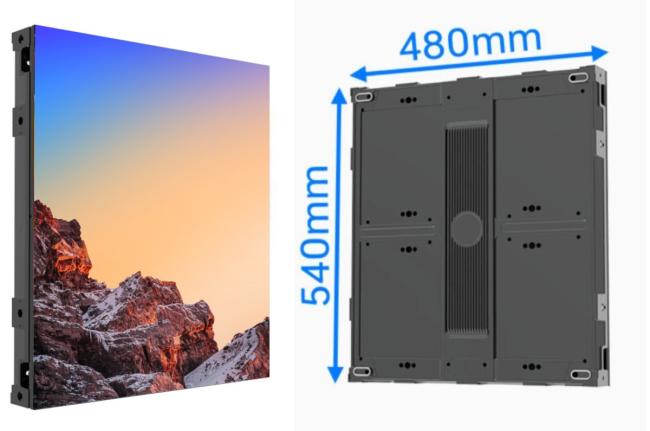

2. Panel dimensions: 480×540×63mm
3. Panel weight: 9kg

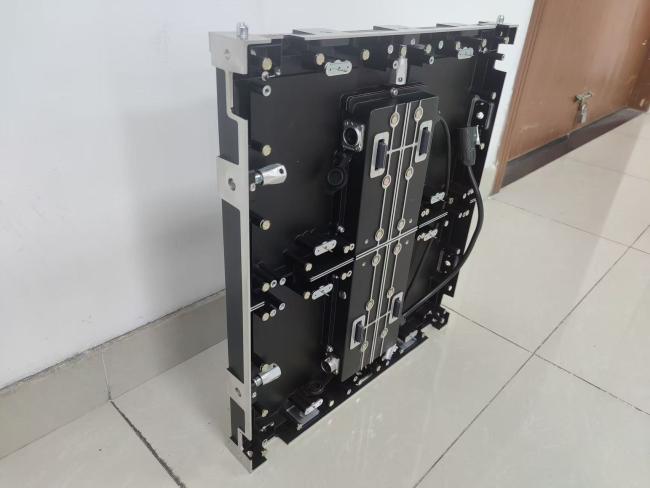

4. Front-maintenance die-cast aluminum cabinet
5. IP65-rated dustproof and waterproof
6. Contrast ratio: 8000:1
7. Refresh rate: 3840Hz
8. Brightness: 4000 nits
9. Cabinet aspect ratio: 8:9
10. Maximum power consumption: 720W/㎡
11. Colour Temperature: 8000(adjustable)
12. Lifespan: 100000 hours
13. Warranty: 2 years
