P2.5mm Indoor LED Video Wall with 160° Viewing Angle 6000:1 Contrast and 50/60 Frequency Rate for Enhanced Visual Experiences
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15 working days
Brand:
TBC LED
Product Description
P2.5mm Indoor LED Video Wall with 160° Viewing Angle 6000:1 Contrast and 50/60 Frequency Rate for Enhanced Visual Experiences
Specifications of Indoor LED Video Wall
| P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 | |
|---|---|---|---|---|---|---|
| LED type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Physical density(dots/sq.m) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 160X160 | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 |
| Module dimension(mm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |
| Module quantity(W×H) | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 |
| Panel resolution | 640X160 | 512X128 | 400X100 | 384X96 | 336X84 | 256X64 |
| Maintenance | Front access service | Front access service | Front access service | Front access service | Front access service | Front access service |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(cd/m²) | 500 | 700 | 800 | 800 | 800-1000 | 1000-1200 |
| Color temperature(K) | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional |
| Grey scale(bit) | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional |
| Viewing angle(V/H) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Brightness/Color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| contrast | 6000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Frequency rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive mode | 1/40Scan | 1/32 Scan | 1/25 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Max power consumption(w/m²) | 480 | 600 | 600 | 600 | 600 | 800 |
| Avg. power consumption(w/m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
Advantages of Indoor LED Video Wall
1. Ultra-thin design
The ultra-thin design effectively saves space, making it integrate seamlessly as part of interior decoration without adding visual weight to the environment.
2. Energy saving and environmental protection
Compared with traditional display equipment, indoor LED displays offer lower energy consumption. They contain no harmful substances, making them environmentally friendly.
3. High reliability
Built with advanced technology and materials, our indoor LED displays offer exceptional reliability and durability. Their long lifespan ensures stable operation with minimal maintenance requirements.
4. Customizability
Full-color LED displays can be customized in size, shape, and resolution to suit various applications and installation environments.
Features of Indoor LED Video Wall

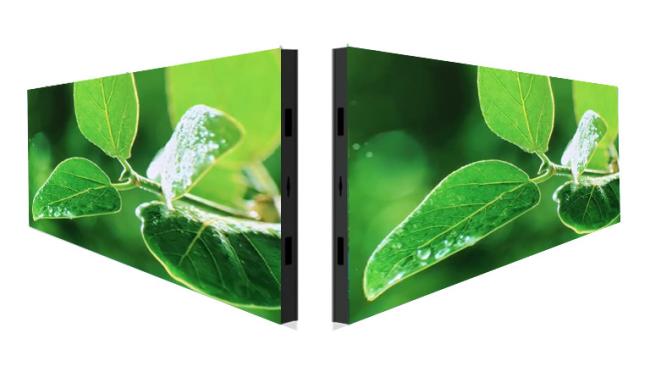

1. Cabinet Dimension
- 1000mm x 250mm x 33mm (5.8kg)
- 750mm x 250mm x 33mm (4.4kg)
- 500mm x 250mm x 33mm (2.9kg)
2. Structure
- Aluminum material frame
- High precision, high strength
- Perfect heat dissipation
- 33mm thickness
3. Innovation and design
4. Hot swapping and wireless connection
- Modules adopt HUB connection for safer signal transmission
- Hot swapping technology enables continuous operation during maintenance
- Ultra-thin thickness with spacious interior
- Standard design for wide applications
5. High refresh
Applications of Indoor LED Video Wall
1. Retail Stores
Indoor LED displays enhance the shopping experience through dynamic advertising, promotional content, and engaging visual displays strategically placed in high-traffic areas.
2. Corporate Offices
Ideal for corporate communication, these displays show announcements, schedules, and updates. They're equally effective in conference rooms for presentations and video conferencing.
3. Educational Institutions
Used in auditoriums and lecture halls for educational content, these displays also serve as information boards in common areas for campus news and emergency alerts.
