Indoor 4K COB LED Display P1.875 Module 150x168.75mm with 600nits Brightness Flip-Chip Technology and Seamless Splicing Large LED Display
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
25days
Brand:
TBC
Product Description
Indoor 4K COB LED Display P1.875 Module 150x168.75mm with 600nits Brightness Flip-Chip Technology and Seamless Splicing Large LED Display
150x168.75mm Flip-Chip Technology Waterproof Dustproof Magnetic Front Access Module
Seamless splicing screen with energy saving and low power consumption.
Specifications
| Parameter | P1.25 | P1.875 |
|---|---|---|
| Pixel Density | 640,000 px/㎡ | 284,089 px/㎡ |
| LED Chip | Flip Chip | |
| Module Size (W*H) | 150*168.75mm | |
| Module Resolution | 120*135 dots | 80*90 dots |
| Surface Treatment | Matt COB | |
| Surface Hardness | 4H | |
| Panel Size (W*H*D) | 600mm*337.5mm*42mm | |
| Panel Weight | 4.5 kg / panel | |
| Panel Resolution (dots) | 480*270 | 320*180 |
| Material | Die-casting Aluminium | |
| Circuit Design | Common Anode Circuit | |
| Flash Correction Storage | Applicable | |
| Brightness | Standard 600nits | |
| Refresh Rate | 3840Hz | |
| Contrast Ratio | 20000:1 (Condition without lighting) | |
| Color Temperature | 9300K (Standard) | |
| Viewing Angle | H160°, V160° | |
| Input Voltage | AC 220 or 100~240V 50/60Hz | |
| Max. Power Consumption (White Balance 600nits) | 70 w/panel | 70 w/panel |
| Maintenance Way | Front Service | |
| IP level of PCB surface | IP65 (Washable by clean water) | |
| Lifetime at 50% Brightness | 100,000 hours | |
| Operating Temperature / Humidity | -10°C-+40°C/10%RH-90%RH | |
| Storage Temperature / Humidity | -20°C-+60°C/10%RH-90%RH | |
| Certificate | CCC, EMC CLASS-A, ROHS, CQC | |
| Application | Indoor | |
| Warranty | 3 years | |
COB LED Product Details
- 600×337.5mm COB Cabinet: Standard cabinet featuring hard-connection design with non-customizable panel size.
- Power Supply: Customized Megmeet Wide Voltage Power Supply (100~240V) - non-selectable.
- Receiving Cards: Selectable options include NovaStar A10s Pro, A8s-N, and A8 Plus-N.
- Customization: Free logo printing available on cabinet back.
Key Features of the COB Series
- Ultra-Thin & Sleek Cabinet Design: Total thickness of only 42mm with minimalist appearance that blends seamlessly with event venues. Enhances portability and space efficiency.
- Premium COB Technology: Advanced Chip-On-Board packaging creates rigid, scratch-resistant surface that prevents pixel damage from collisions, ensuring reliable operation in high-traffic scenarios.
- Seamless Splicing & Stunning Visuals: Gapless splicing for large displays with 20,000:1 contrast ratio delivers sharp details, vivid colors and deep blacks for high-definition content.
- Wide Voltage Power Supply (100~240V): Universal power supply compatible with global grids, suitable for diverse indoor/outdoor applications without power compatibility concerns.

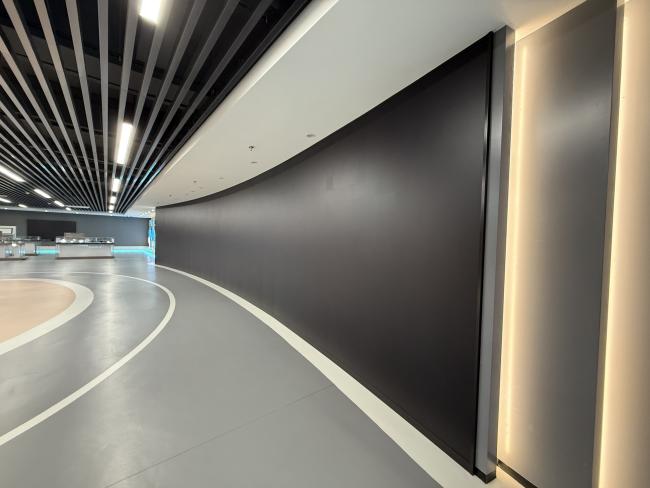

COB Cabinet Project Case Study
